BH-series | 4kW–11kW
Hybrid Solar Inverter
Main Feature
- Lithium Battery Auto-restart Function, More Convenient for Lithium Battery Charging
- Utility Charging Voltage/PV Charging Voltage Adjustable, Match Different Battery Charging Requirements
- Battery Reverse Connection Protection with Fuse Switch, Safer Installation
- PF1.0, High Efficiency, Lower Consumption, Energy Conservation/ Environmental Protection/Electricity Saving/Cost Saving

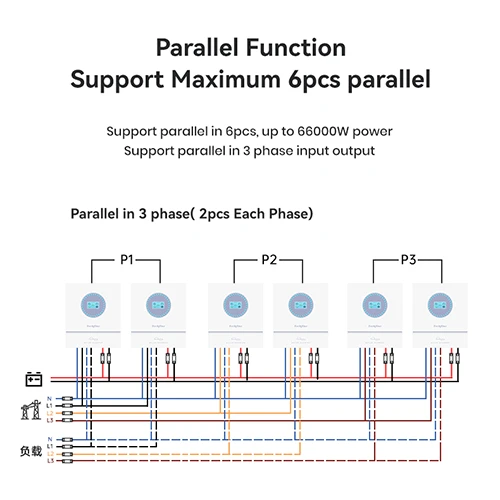

- Parallel Function Up to Maximum 9 Units: Enlarge More Loads
- High Precision of Output Voltage,±5%, Take Care of Your Appliances
- Communication Option: External WIFI, Supervise at Any Time
Product Details

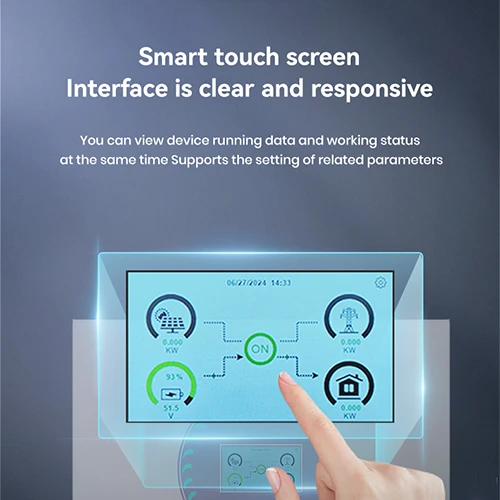

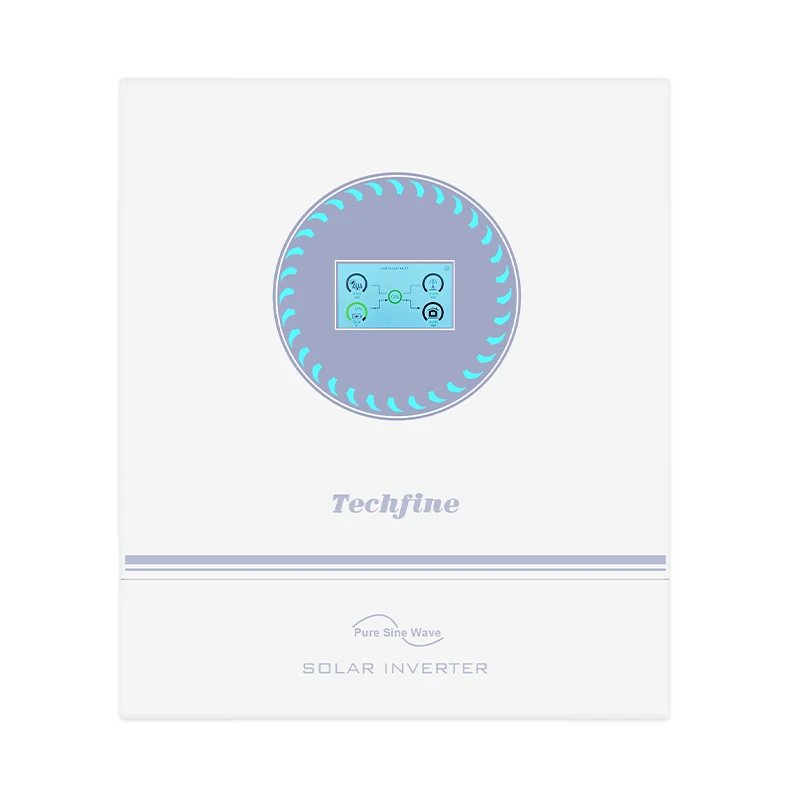

Smart Touchable Screen
Provides an intuitive touch interface for easier operation, clearer system status viewing, and faster parameter adjustment.
Smart Touchable Screen
Provides an intuitive touch interface for easier operation, clearer system status viewing, and faster parameter adjustment.
Smart Touchable Screen
Provides an intuitive touch interface for easier operation, clearer system status viewing, and faster parameter adjustment.
Smart Touchable Screen
Provides an intuitive touch interface for easier operation, clearer system status viewing, and faster parameter adjustment.
Smart Touchable Screen
Provides an intuitive touch interface for easier operation, clearer system status viewing, and faster parameter adjustment.
Smart Touchable Screen
Provides an intuitive touch interface for easier operation, clearer system status viewing, and faster parameter adjustment.
Technical specification
Downloaded Specifications| Model | BH4024SMH | BH6248SMH | BH8648SMH | BH11048SMH |
|---|---|---|---|---|
| Input Formation | L+N+PE | |||
| AC Input | 220/230/240VAC | |||
| Input Voltage Range | 90-280VAC±3V(Normal Mode) 170-280VAC±3V (UPS Mode) | |||
| Frequency | 50/60Hz(Adaptive) | |||
| Rated Power | 4000W | 6200W | 8600W | 11000W |
| Dual Output Power | 4000W/4500W | 6200W/6500W | 8600W/11000W | 8600W/12000W |
| AC Output | ||||
| Output Voltage(AC) | 220/230/240VAC±5% | |||
| Output Frequency | 50/60Hz±0.1% | |||
| Output Wave | Pure Sine Wave | |||
| Transfer Time(Adjustable) | 10ms for Computer Equipment, 20ms for Household Equipment | |||
| Peak Power | 8000VA | 12400VA | 17200VA | 22000VA |
| Overload Ability | Battery Mode: 11s@105%~150% Load; 2s@150%~200% Load; 400ms@>200% Load | |||
| Grid / AC Charger | ||||
| Output Voltage | 220/230/240VAC±5% (Feed-in Grid Voltage Range:195~253VAC) | |||
| Grid Voltage Range | 170-265VAC | |||
| Grid Frequency Range | 49-51±1Hz/59-61±1Hz | |||
| Power Factor Range | >0.99 | |||
| Max efficiency (DC/AC) | 98% | |||
| Rated Voltage | 24VDC | 48VDC | ||
| Constant Charging Voltage | 28.2VDC | 56.4Vdc | ||
| Float Charging Voltage | 27VDC | 54VDC | ||
| PV Charging Method | MPPT | 2*MPPT | ||
| PV Input | ||||
| Max PV Input Power | 6500W | 8500W | 2*6500W | 2*7500W |
| PV Input Voltage Range | 60~500VDC | 90~500VDC | ||
| MAX PV Input Voltage | 500VDC | |||
| MAX PV Input Current | 27A | 27A/27A | ||
| Charging (AC + PV) | ||||
| MAX PV Charge Current | 120A | 150A | ||
| MAX AC Charge Current | 100A | 150A | ||
| MAX Charge Current | 120A | 150A | ||

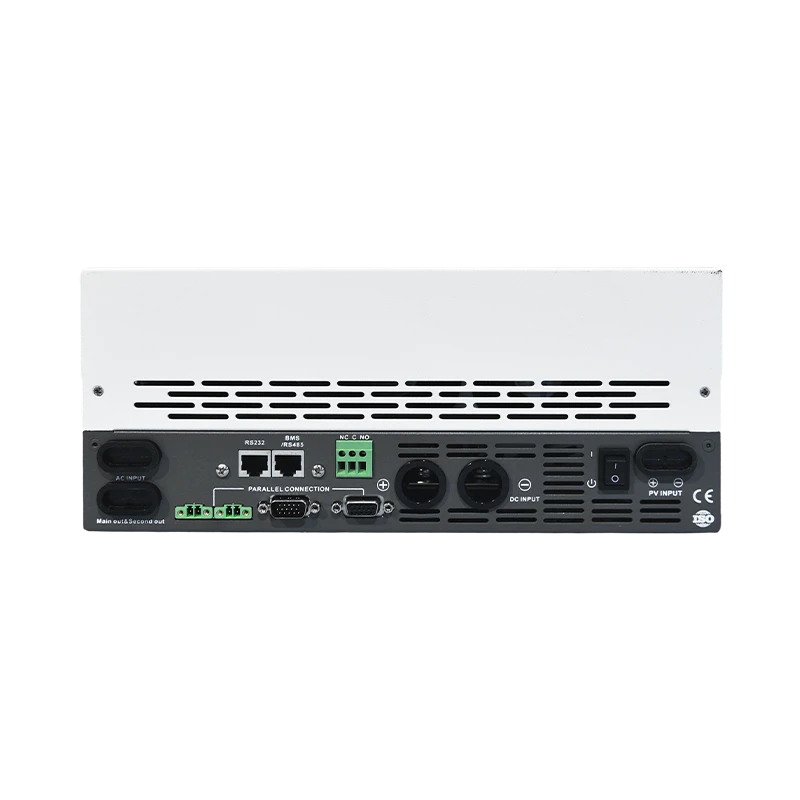

| Communication | ||||
| LCD | Can display operating mode/load/input/output | |||
| RS232 | 5PIN/Pitch2.54mm,Baud Rate 2400 | |||
| Expansion Slot Communication Interface | Lithium Battery BMS Communication Card,WIFI 2×5PIN/Pitch2.54mm | |||
| Parallel Interface | Not Support Parallel | Support Parallel | ||
| Environmental | ||||
| Operating Temperature | -10°C~50°C | |||
| Storage Temperature | -15°C~60°C | |||
| Ork Altitude | No more than 1000m, If 1000m | |||
| Operating Environment Humidity | Non Condensing | |||
| Noise | <50dB | |||
| L*W*H(mm) | 483x313x143mm | 570.8x471x148.2mm | ||
