EA-series | 1.6kW–11kW
Hybrid Solar Inverter
Main Feature

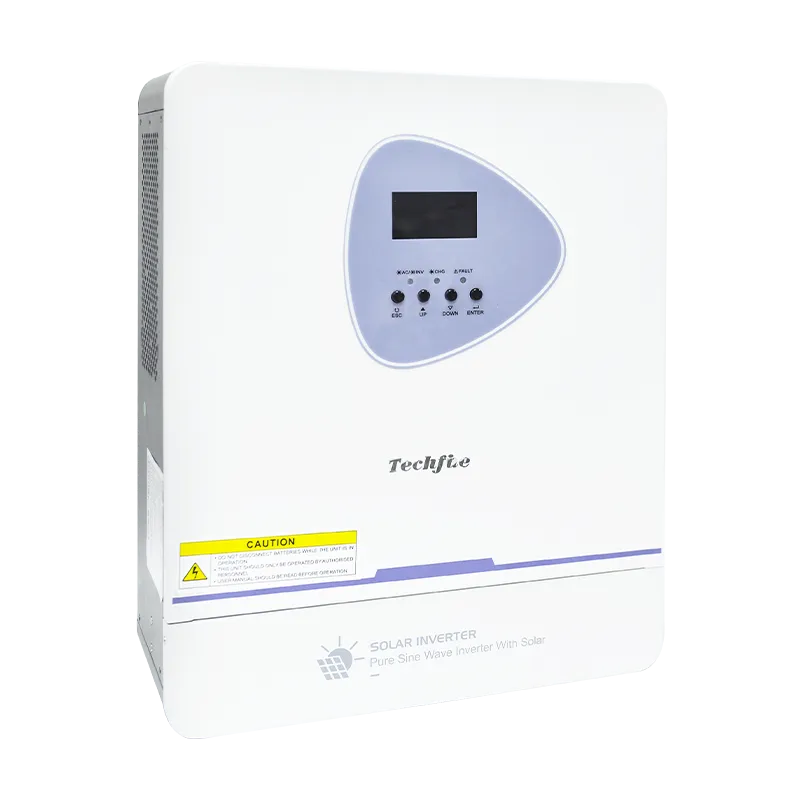

- Rounded corner design, exquisite appearance
- Multiple parameters can be adjusted according to user needs to adapt to different occasions
- Minimum PV Voltage 30V, more cost-effective to use
- Support lithium battery communication, external WIFI, generator self-start dry contact function
- Real-time display of actual load power greatly improves user perception
- Pure sine wave output, can adapt to different loads
- Output short-circuit protection function
- Power factor=1
Product Details
Optional WiFi Remote Monitoring Module
Supports lithium battery communication, external WiFi, generator auto-start, and real-time monitoring and settings via mobile app.
Optional WiFi Remote Monitoring Module
Supports lithium battery communication, external WiFi, generator auto-start, and real-time monitoring and settings via mobile app.
Optional WiFi Remote Monitoring Module
Supports lithium battery communication, external WiFi, generator auto-start, and real-time monitoring and settings via mobile app.
Optional WiFi Remote Monitoring Module
Supports lithium battery communication, external WiFi, generator auto-start, and real-time monitoring and settings via mobile app.
Optional WiFi Remote Monitoring Module
Supports lithium battery communication, external WiFi, generator auto-start, and real-time monitoring and settings via mobile app.
Optional WiFi Remote Monitoring Module
Supports lithium battery communication, external WiFi, generator auto-start, and real-time monitoring and settings via mobile app.
Technical specification
Downloaded Specifications| Model | EA2012EMH | EA3024EMH | EA4024EMH | EA6248EMH | EA8648EMH | EA11048EMH |
|---|---|---|---|---|---|---|
| AC Input | ||||||
| Input Formation | L+N+PE | |||||
| AC Input | 220/230/240VAC | |||||
| Input Voltage Range | 90-280VAC±3V(Normal Mode) 170-280VAC±3V (UPS Mode) | |||||
| Frequency | 50/60Hz(Adaptive) | |||||
| Inverter Output | ||||||
| Rated Power | 1600W | 3000W | 4000W | 6200W | 8600W | 11000W |
| Output Voltage | 220/230/240VAC±5% | |||||
| Output Frequency | 50/60Hz±0.1% | |||||
| Output Wave | Pure Sine Wave | |||||
| Transfer Time(Adjustable) | 10ms for Computer Equipment,20ms for Household Equipment | |||||
| Peak Power | 3200VA | 6000VA | 8000VA | 12400VA | 17200VA | 22000VA |
| Overload Ability | Battery Mode: 11s@105%~150% Load; 2s@150%~200% Load; 400ms@>200% Load | |||||
| Grid connected Operation | ||||||
| Output Voltage | No grid connection | 220/230/240VAC | ||||
| Grid Voltage Range | 170-265VAC | |||||
| Grid Frequency Range | 49-51±1Hz/59-61±1Hz | |||||
| Output Current | 17.4A | 26.9A | 37.4A | 47.8A | ||
| Power Factor Range | >0.99 | |||||
| Max efficiency (DC/AC) | 0.98 | |||||
| Battery Charging | ||||||
| Rated Voltage | 12VDC | 24VDC | 48VDC | |||
| Constant Charging Voltage | 14.1VDC | 28.2VDC | 56.4VDC | |||
| Float Charging Voltage | 13.5VDC | 27VDC | 54VDC | |||
| PV Charging Method | MPPT | MPPT | MPPT | MPPT | 2*MPPT | 2*MPPT |
| PV Input & Charging | ||||||
| Max PV Input | 2000W | 3000W | 5000W | 6200W | 2*5500W | 2*5500W |
| MPPT Tracking Range | 30~500VDC | 30~500VDC | 60~500VDC | 60~500VDC | 90~500VDC | 90~500VDC |
| MAX PV Input Voltage | 500VDC | 500VDC | 500VDC | 500VDC | 500VDC | 500VDC |
| MAX PV Charge Current | 100A | 100A | 120A | 120A | 150A | 150A |
| MAX AC Charge Current | 60A | 60A | 100A | 100A | 120A | 150A |
| MAX Charge Current | 100A | 100A | 120A | 120A | 150A | 150A |
| Communication & Display | ||||||

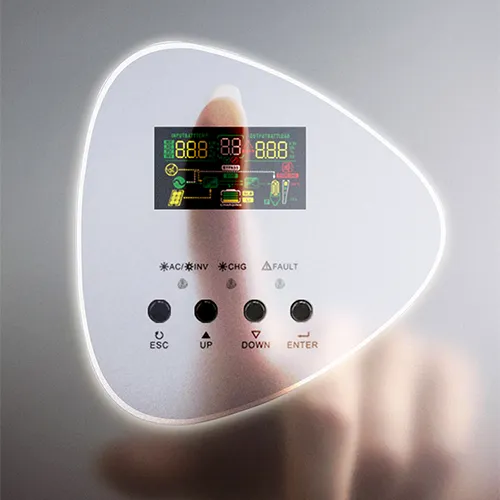

| LCD | Can display operating mode/load/input/output | |||||
| RS232 | 5PIN/Pitch2.54mm,Baud Rate 2400 | |||||
| Expansion Slot Communication Interface | Lithium Battery BMS Communication Card,WIFI 2×5PIN/Pitch2.54mm | |||||
| Parallel Interface | Not Support Parallel | |||||
| Environmental | ||||||
| Operating Temperature | -10°C~50°C | |||||
| Storage Temperature | -15°C~60°C | |||||
| Ork Altitude | No more than 1000m, If 1000m<,Rate power will lower, MAX 4000m, Refer | |||||
| Operating Environment Humidity | Non Condensing | |||||
| Noise | ≤50dB | |||||
