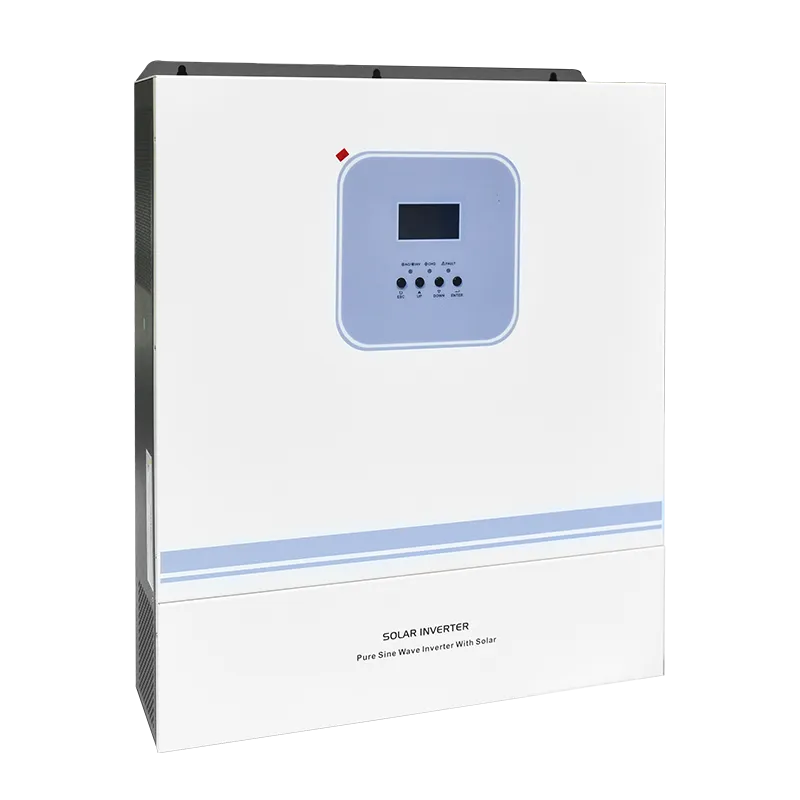

GA Pro Plus-series | 6.2kW–11kW
Hybrid Solar Inverter
2 MPPTsParallel Up to 9 Units
Main Feature
- Lithium Battery Auto-restart Function, More Convenient for Lithium Battery Charging
- Intelligent Power Supply Mode, Intelligent Distribution of Solar Panel/Mains/Battery Power Shares
- Utility Charging Voltage/PV Charging Voltage Adjustable, Match Different Battery Charging Requirements
- Slim Body, Convenient Installation And Transportation
- Battery Reverse Connection Protection with Fuse Switch, Safer Installation
- PF1.0, High Efficiency, Lower Consumption, Energy Conservation/Environmental Protection/Electricity Saving/Cost Saving
- Support Working without Battery: Reduce Solar System Cost
- Parallel Function Up to Maximum 9 Units: Enlarge More Loads
- High Precision of Output Voltage,±5%, Take Care of Your Appliances
- Communication Option: External WIFI, Supervise at Any Time
- BMS function for lithium battery
Product Details
Wide BMS Communication Compatibility
Supports over 20 mainstream BMS communication protocols automatically for seamless battery integration.
Energy Statistics & Status Analysis
Provides detailed electricity statistics (daily, monthly, yearly) and allows setting charging time and load power schedules.
Easy On/Off-Grid Switching
Automatically switches between on-grid and off-grid modes depending on power availability, ensuring flexible energy use.
Dual PV Input with High-Current Charging
Dual PV input design supports high charging current, with a clear display showing real-time PV input status.

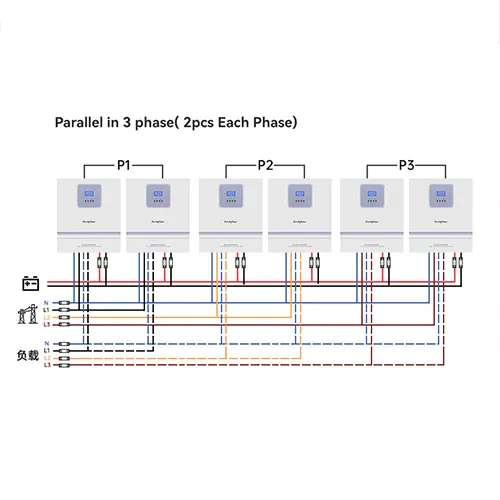

Parallel Function — Up to 9 Units
Supports parallel operation of up to 9 units for higher total output power and optional 3-phase configuration.
Wide Application Compatibility
Adaptable to most working environments with energy-saving performance and no power limitations.
Technical Specifications
| Model | GA6248SMHB | GA8648SMHB | GA11048SMHB |
|---|---|---|---|
| AC Input | |||
| Nominal Voltage | 220/230/240VAC | ||
| Voltage Range | 90-280VAC±3V(Inverter Mode) 170-280VAC±3V(UPS Mode) | ||
| Frequency | 50-60Hz Auto sensing | ||
| Inverter Output | |||
| Rated Output Power | 6200W | 8600W | 11000W |
| Output Voltage(AC) | 220/230/240VAC±5% | ||
| Output Frequency | 50/60Hz±0.1% | ||
| Waveform | Pure sine wave | ||
| Transfer time(AC to DC) | 10ms for Computer Equipment, 20ms for Household Equipment | ||
| Peak Power | 12400VA | 16000VA | 22000VA |
| Overload Capacity(Battery Mode) | Battery Mode: 11s@105%~150% Load; 2s@150%~200% Load; 400ms@>200% Load | ||
| Grid connected Operation | |||
| Output Voltage | 220/230/240VAC | ||
| Grid Voltage Range | 195-253VA | ||
| Grid Frequency Range | 49-51±1Hz/59-61±1Hz | ||
| Output Current | 26.9A | 34.7A | 47.8A |
| Power Factor Range | >0.99 | ||
| Max efficiency (DC/AC) | 0.98 | ||
| Battery Charging | |||
| Norminal Voltage | 48VDC | ||
| Constant Charging Voltage | 56.4VDC | ||
| Float Charging Voltage | 54VDC | ||
| PV Input & Charging | |||
| PV Charging Way | MPPT | 2*MPPT | |
| Max PV Input Power | 8500W | 2*6500W | 2*7500W |
| MPPT Controller Voltage | 60-500VDC | 90-500VDC | |
| MAX PV Input Voltage | 500VDC | ||
| MAX PV Charge Current | 120A | 150A | 150A |
| MAX AC Charge Current | 100A | 120A | 150A |
| MAX Charge Current | 120A | 150A | 150A |
| Communication & Display | |||
| LCD Display | AC input Voltage,AC input frequency,PV Voltage,PV Current,Output Voltage, Output Frequency, Battery Voltage,Load Current,etc. | ||
| RS232 | 5PIN/Pitch2.0mm | ||
| Expansion Slot Communication Interface | 2×5PIN/Pitch2.54mm,Lithium battery BMS communication card,WIFI, etc | ||
| Parallel Interface | Yes:Max 9 parallel machines | ||
| Environmental Conditions | |||
| Operating Temperature | -10~50°C | ||
| Humidity | 20%~95%(Non-condensing) | ||
| Storage Temperature | -15~60°C | ||
| Altitude | <1000m | ||
| Noise(dB) | ≤50db | ||
