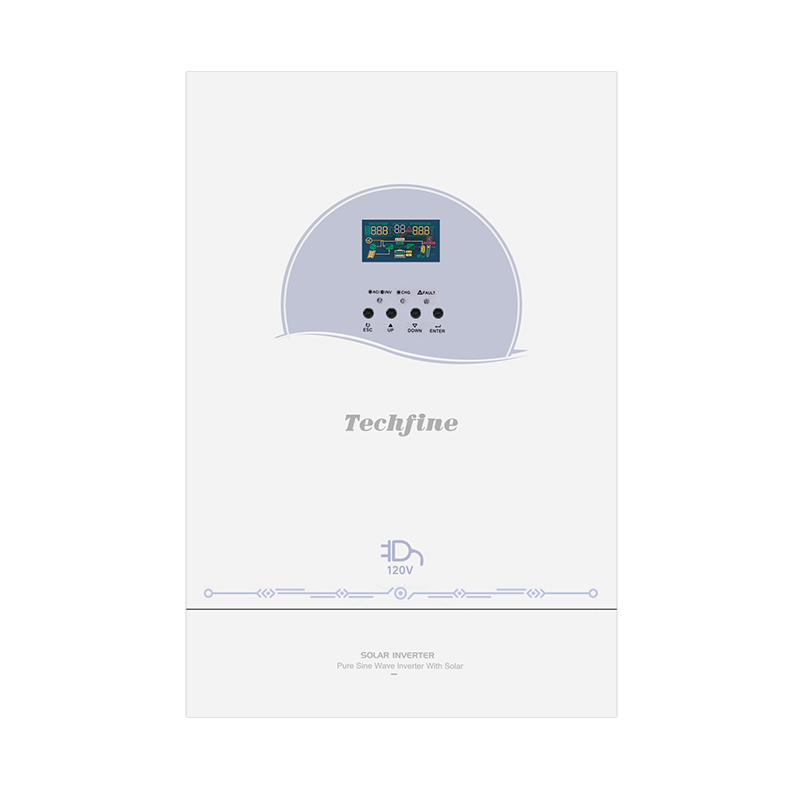

GA Pro S-series | 5.5kW
Hybrid Solar Inverter
Main Feature
- Lithium Battery Auto-restart Function, More Convenient for Lithium Battery Charging
- Display can be designed with a touch screen panel
- Utility Charging Voltage/PV Charging Voltage Adjustable, Match Different Battery Charging Requirements
- Standard dual AC voltage output
- Battery Reverse Connection Protection with Fuse Switch, Safer Installation
- PF1.0, High Efficiency, Lower Consumption, Energy Conservation/Environmental Protection/Electricity Saving/Cost Saving
- Standard off grid function
- Input/output 110/120VAC
- Communication Option: External WIFI, Supervise at Any Time
- BMS function for lithium battery
Product Details
Harnessing Solar Synergy

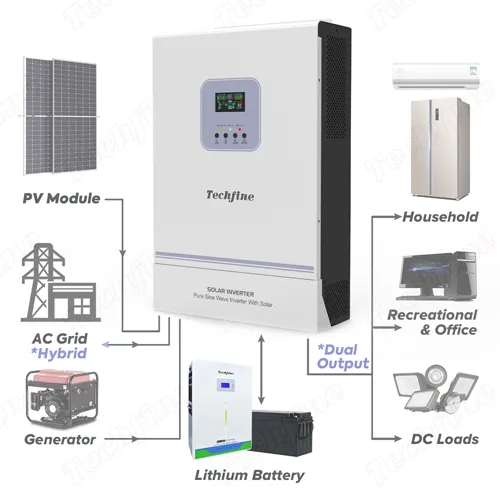

Techfine presents a seamless solar energy experience with our GA pro-Series Inverter – the heart of solar energy system. The Solar System Diagram illustrates the smart connectivity that powers your world.
Harnessing Solar Synergy
Techfine presents a seamless solar energy experience with our GA pro-Series Inverter – the heart of solar energy system. The Solar System Diagram illustrates the smart connectivity that powers your world.
Harnessing Solar Synergy
Techfine presents a seamless solar energy experience with our GA pro-Series Inverter – the heart of solar energy system. The Solar System Diagram illustrates the smart connectivity that powers your world.
Harnessing Solar Synergy
Techfine presents a seamless solar energy experience with our GA pro-Series Inverter – the heart of solar energy system. The Solar System Diagram illustrates the smart connectivity that powers your world.
Harnessing Solar Synergy
Techfine presents a seamless solar energy experience with our GA pro-Series Inverter – the heart of solar energy system. The Solar System Diagram illustrates the smart connectivity that powers your world.
Harnessing Solar Synergy
Techfine presents a seamless solar energy experience with our GA pro-Series Inverter – the heart of solar energy system. The Solar System Diagram illustrates the smart connectivity that powers your world.
Technical specification
Downloaded Specifications| Model | GA5548YMH |
|---|---|
| AC Input | |
| Input Formation | L+N+PE |
| AC Input | 110/120VAC |
| Input Voltage Range | 65-145VAC±3V |
| Frequency | 60Hz(Adaptive) |
| Inverter Output | |
| Rated Power | 5500W |
| Dual Output Power | 5500W |
| Output Voltage(AC) | 110/120VAC±5% |
| Output Frequency | 60Hz±0.1% |
| Output Wave | Pure Sine Wave |
| Transfer Time(Adjustable) | 10ms for Computer Equipment, 20ms for Household Equipment |
| Peak Power | 11000VA |
| Overload Ability | Battery Mode: 11s@105%~150% Load; 2s@150%~200% Load; 400ms@>200% Load |
| Grid connected Operation | |
| Output Voltage | 110/120VAC |
| Grid Voltage Range | 90-140VAC |
| Grid Frequency Range | 47-53±1Hz/57-62±1Hz |
| Output Current | 50A |
| Power Factor Range | >0.99 |
| Max efficiency (DC/AC) | >98% |
| Battery Charging | |
| Rated Voltage | 48VDC |
| Constant Charging Voltage | 56.4Vdc |
| Float Charging Voltage | 54VDC |
| PV Input & Charging | |
| PV Charging Method | MPPT |
| Max PV Input Power | 8500W |
| PV Input Voltage Range | 60~500VDC |
| MAX PV Input Voltage | 500VDC |
| MAX PV Input Current | 27A |
| MAX PV Charge Current | 100A |
| MAX AC Charge Current | 40A |
| MAX Charge Current | 100A |
| Communication & Display | |
| LCD | Can display operating mode/load/input/output |
| RS232 | 5PIN/Pitch2.54mm,Baud Rate 2400 |
| Expansion Slot Communication Interface | Lithium Battery BMS Communication Card,WIFI 2×5PIN/Pitch2.54mm |
| Parallel Interface | Not Support Parallel |
| Environmental Conditions | |
| Operating Temperature | -10°C~50°C |
| Storage Temperature | -15°C~60°C |
| Ork Altitude | No more than 1000m, If 1000m<,Rate power will lower, MAX 4000m, Refer |
| Operating Environment Humidity | Non Condensing |
| Noise | <50dB |
| Mechanical | |
| L*W*H(mm) | 495*312*125mm |
