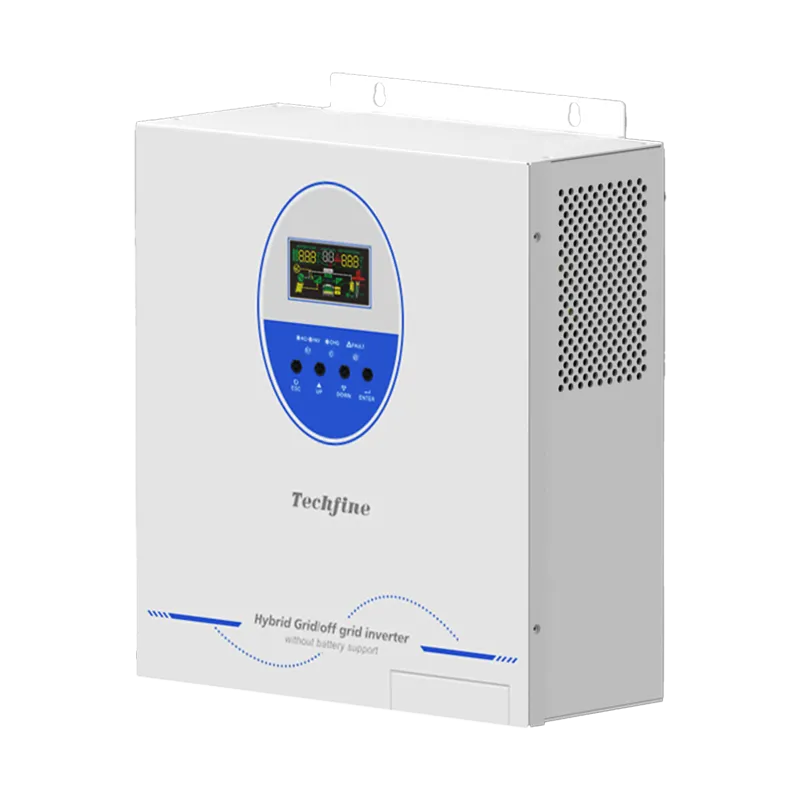

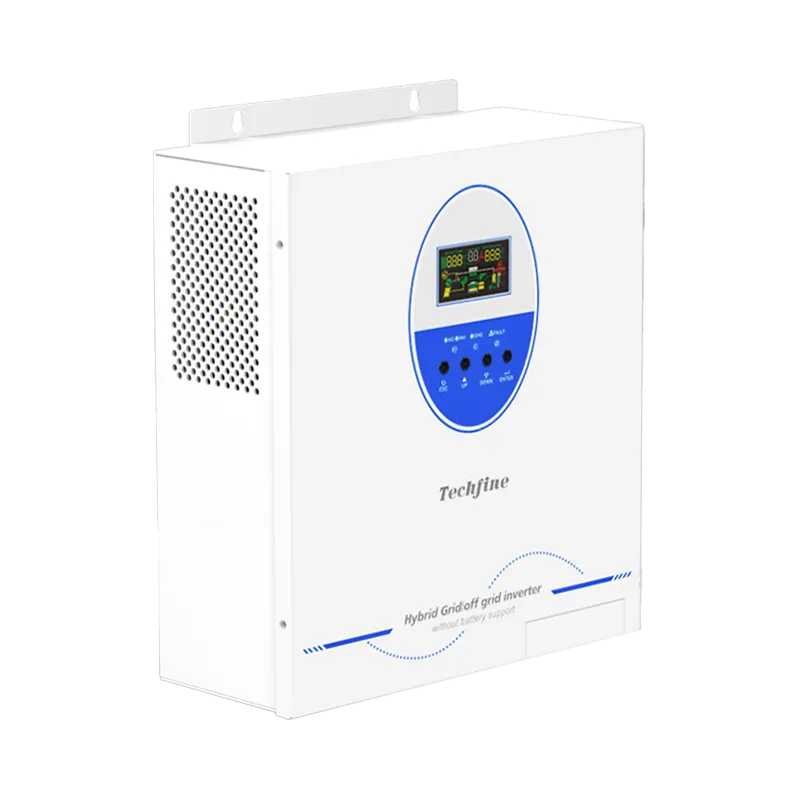

HK-series | 6200W
Main Feature
- Battery-free pure photovoltaic inverter, eliminating the need for energy storage battery packs, lower costs.
- Support CT anti-backflow function, automatically detect the grid status, and ensure that no power is reversed to the grid.
- LCD displays 6 core parameters in real time (PV input/grid status/load power/ conversion efficiency/temperature/operating mode).
- Unlimited load capacity, automatically adjust power according to PV output and load conditions to achieve unlimited load capacity.
- Photovoltaic power grid connection, better energy saving for electrical appliances >> External WIFI, exquisite design, easy to install, more durable.
Product Details
Lower Cost Advantage
Offers up to 40% lower cost compared with traditional inverters, providing strong competitiveness through specialized and innovative R&D.
APP Remote Monitoring
Supports WiFi or remote data communication for real-time monitoring of inverter and battery status anytime, anywhere.
Wide Device Compatibility
Works with most household and small commercial appliances, offering stable performance and broad application adaptability.
Wide Grid-Tie Voltage Support
Supports both grid-tie and off-grid modes. Solar power prioritizes home use, while the system automatically switches to off-grid operation when AC input is unavailable.
Unlimited Load Capacity
Combines PV and grid power to support extra load demand, allowing the system to achieve practical unlimited load capability.
Three-Phase Load Support
Multiple inverters can work together to support three-phase loads, providing reliable power for household and light industrial equipment.
Technical Specifications
| Model | HK6200 |
|---|---|
| Input Formation | L+N+PE |
| AC Input | 220/230/240VAC |
| Input Voltage Range | 90-280VAC±3V(Normal Mode) 170-280VAC±3V (UPS Mode) |
| Frequency | 50/60Hz(Adaptive) |
| Rated Power | 6200W |
| Transfer Time(Adjustable) | 10ms for Computer Equipment, 20ms for Household Equipment |
| AC Output | |
| Output Voltage(AC) | 220/230/240VAC±5% |
| Output Frequency | 50/60Hz±0.1% |
| Output Wave | Pure Sine Wave |
| Peak Power | 13000W |
| Overload Ability | Battery Mode：11s@105%~150% Load ; 2s@150%~200% Load ; 400ms@＞200% Load |
| Output Voltage | 220/230/240VAC |
| Output Current | 30A |
| Power Factor Range | >0.99 |
| Grid / AC Charger | |
| Grid Voltage Range | 170-264VAC |
| Grid Frequency Range | 49-51±1Hz/59-61±1Hz |
| Max efficiency (DC/AC) | >95% |
| PV Input | |
| PV Operating Range | 60~500Vdc |
| Max PV Input Power | 9000W |
| Optimal Vmp Range | 300~400Vdc |
| MAX PV Input Voltage | 500Vdc |
| MAX PV Input Current | 27A |

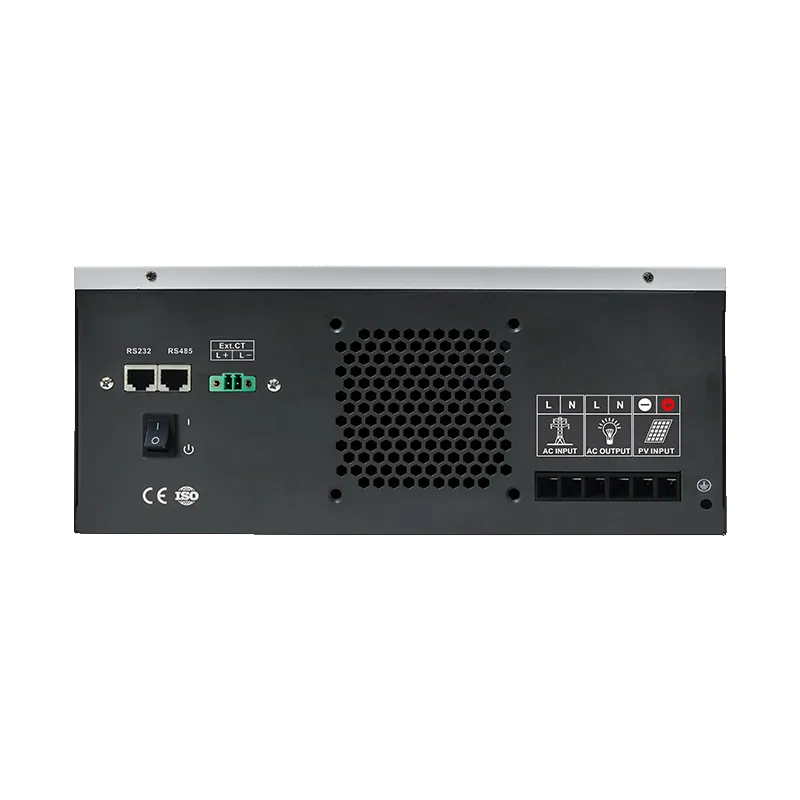

| Communication | |
| LCD | Can display operating mode/load/input/output |
| RS232 | 5PIN/Pitch2.54mm,Baud Rate 2400 |
| Expansion Slot Communication Interface | WIFICard, CT Detection, etc. |
| Environmental | |
| Ambient Temperature | -10°C~50°C |
| Operating Environment Humidity | -15°C~60°C |
| Storage Temperature | No more than 1000m, If 1000m<,Rate power will lower, MAX 4000m, Refer |
| Ork Altitude | 20%~95% Non Condensing |
| Noise | <50dB |
