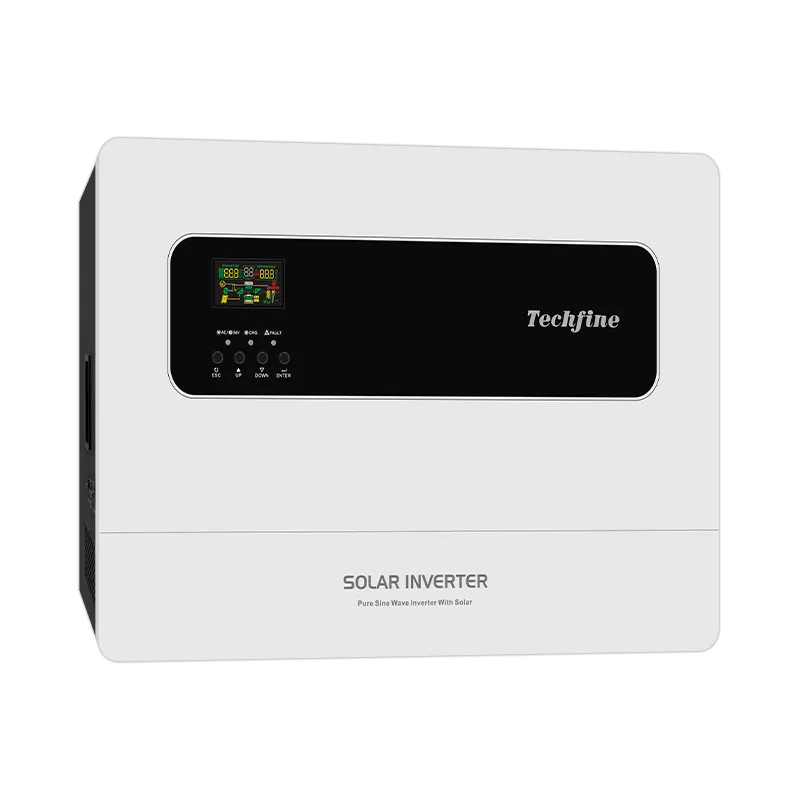

JV-series | 3kW–8kW
Off-grid Solar Inverter
Transformer-basedHigh PV Input
Main Feature
- Low no-load loss, less than half of the high-frequency machine with the same power

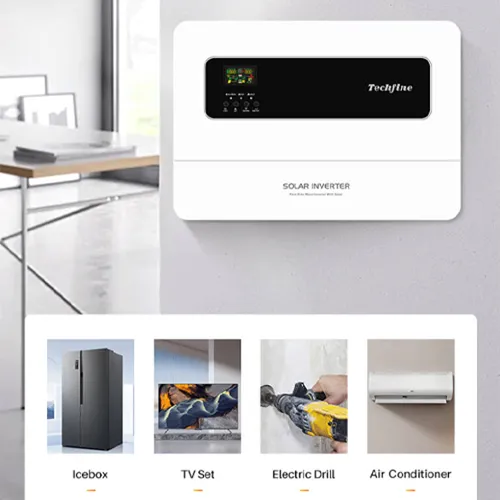

- Pure sine wave output, can adapt to different loads
- Output short-circuit protection function
- Multiple parameters can be adjusted according to user needs
- Built-in MPPT can reach 245V, 100A
- Standard BMS communication function
- Standard RS232 communication function
Product Details
Full-Capacity Pure Sine Wave Output
Delivers true full-rated power with pure sine wave output for stable operation and reduced wear on electrical devices.
Full-Capacity Pure Sine Wave Output
Delivers true full-rated power with pure sine wave output for stable operation and reduced wear on electrical devices.
Full-Capacity Pure Sine Wave Output
Delivers true full-rated power with pure sine wave output for stable operation and reduced wear on electrical devices.
Full-Capacity Pure Sine Wave Output
Delivers true full-rated power with pure sine wave output for stable operation and reduced wear on electrical devices.
Full-Capacity Pure Sine Wave Output
Delivers true full-rated power with pure sine wave output for stable operation and reduced wear on electrical devices.
Full-Capacity Pure Sine Wave Output
Delivers true full-rated power with pure sine wave output for stable operation and reduced wear on electrical devices.
Technical specification
Downloaded Specifications| MODEL | JV3824AM8V | JV5048AM8V | JV6348AM8V | JV10048AM8V |
|---|---|---|---|---|
| Rated output power | 3000W | 4000W | 5000W | 8000W |
| Power Input | 220VAC (standard) / 110VAC (customized) | |||
| Input voltage range | 220V model: 154-264VAC±3V (normal mode) 185-264VAC±3V (UPS mode) \110V model: 77-132VAC±3V (normal mode) 92-132VAC±3V (UPS mode) |
|||
| Input frequency | 50/60Hz±5% | |||
| OUTPUT | ||||
| Output voltage under AC power | The output voltage under AC power is the same as the input voltage | |||
| Output frequency under AC power | The output frequency under AC power is the same as the input frequency | |||
| Output voltage under inverter mode | 220VAC±10% (110VAC±10%) | |||
| Output frequency under inverter mode | 50HZ or 60HZ±1% | |||
| Output waveform under inverter mode | pure Sine Wave | |||
| BATTERY & CHARGER | ||||
| Battery Type | External lead-acid battery or water battery or lithium battery | |||
| Battery voltage | 24VDC | 48VDC | ||
| Battery charging voltage | 27.4VDC | 54.8VDC | ||
| PV INPUT | ||||
| Maximum PV array power | 2700W | 5400W | ||
| PV input voltage range(MPPT) | 30-245VDC | 60-245VDC | ||
| Optimal Vmp operating range | 30-170VDC | 60-170VDC | ||
| Maximum photovoltaic open-circuit voltage | 245VDC | |||
| Maximum solar charging current | 100A | |||
| AC INPUT | ||||
| Maximum AC charging current | 63A | 41A | 52A | 83A |
| EFFICIENCY | ||||
| Conversion time | ≤10ms(UPS mode) / ≤20ms(normal mode) | |||
| Load peak ratio | (MAX)3:1 | |||
| Standby power (W) | 16W | 32W | ||
| PROTECTION | ||||
| Protection function | Under grid power: input over current circuit breaker protection Under inverter operation: overload protection, short circuit protection, low voltage protection, battery reverse polarity protection (fuse) |
|||

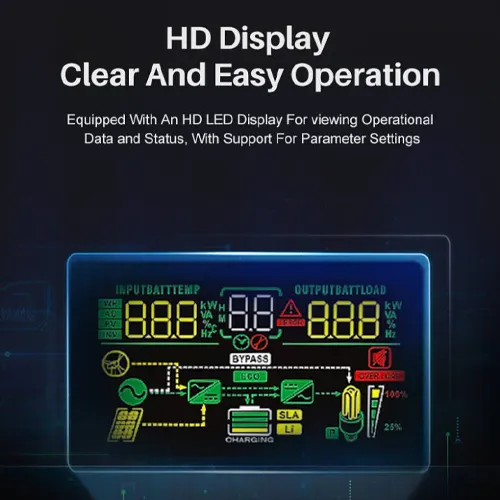

| Status display | color segment display with LED indicator view parameters such as AC voltage, AC frequency, PV voltage, PV current, output voltage, output frequency, battery voltage, and load current using the page turning key. LED displays mains power, charging status, inverter status, and fault status |
|||
| Audible alert | buzzer produces different alarm sounds based on the fault codes, distinguished by long and short tones | |||
| ENVIRONMENTAL PARAMETERS | ||||
| Operating temperature | - 10°C~+50°C | |||
| Storage temperature | - 15°C~+45°C | |||
| Relative temperature | - 10°C~90°C non-condensing | |||
| Noise | ＜45dB | |||
| PHYSICAL PARAMETERS | ||||
| Machine dimensions(L*W*H)mm | 535*335*170mm | |||
