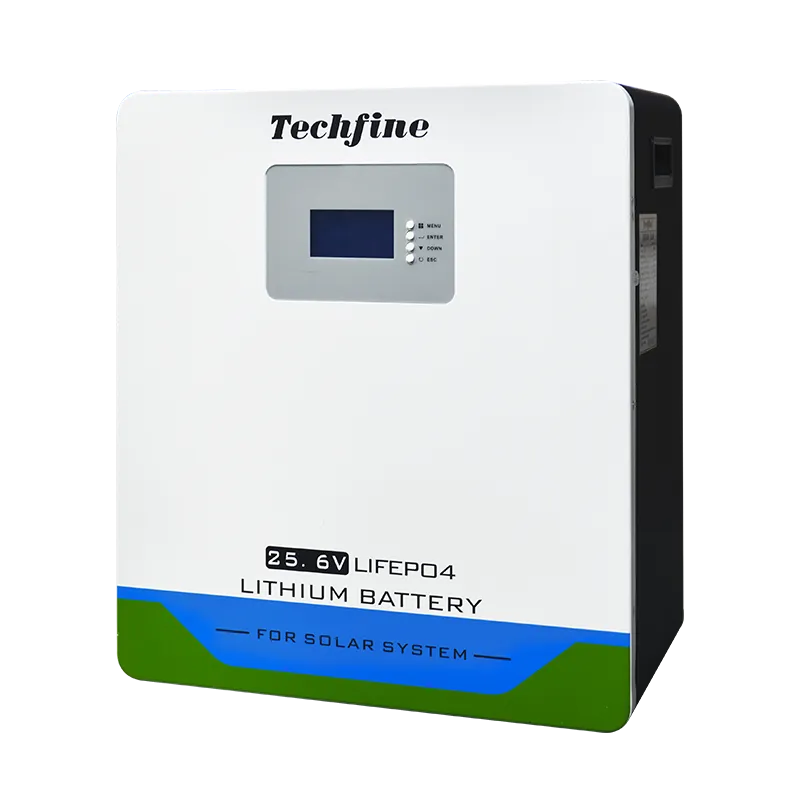

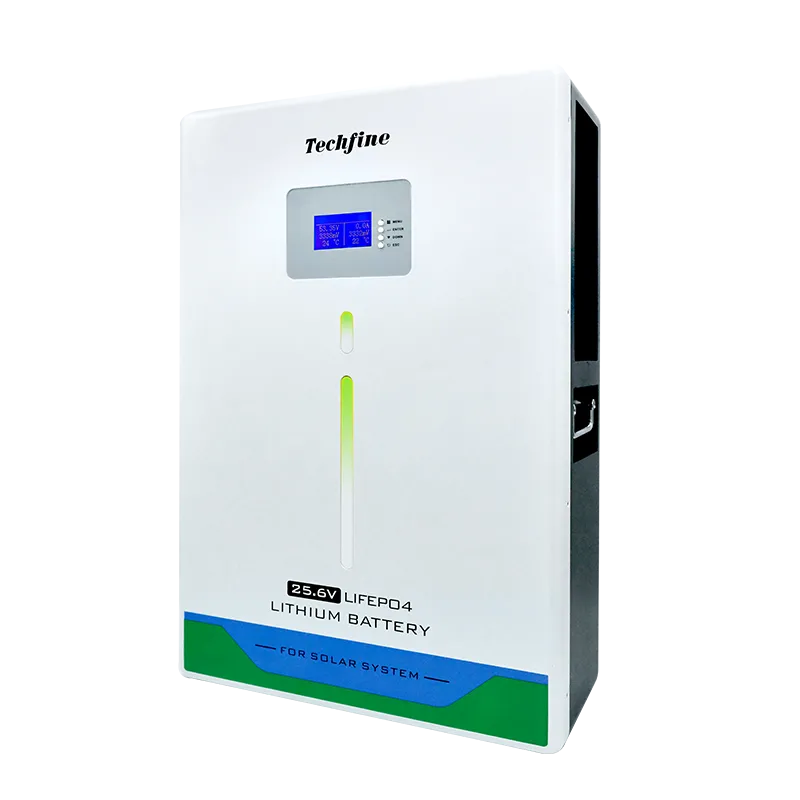

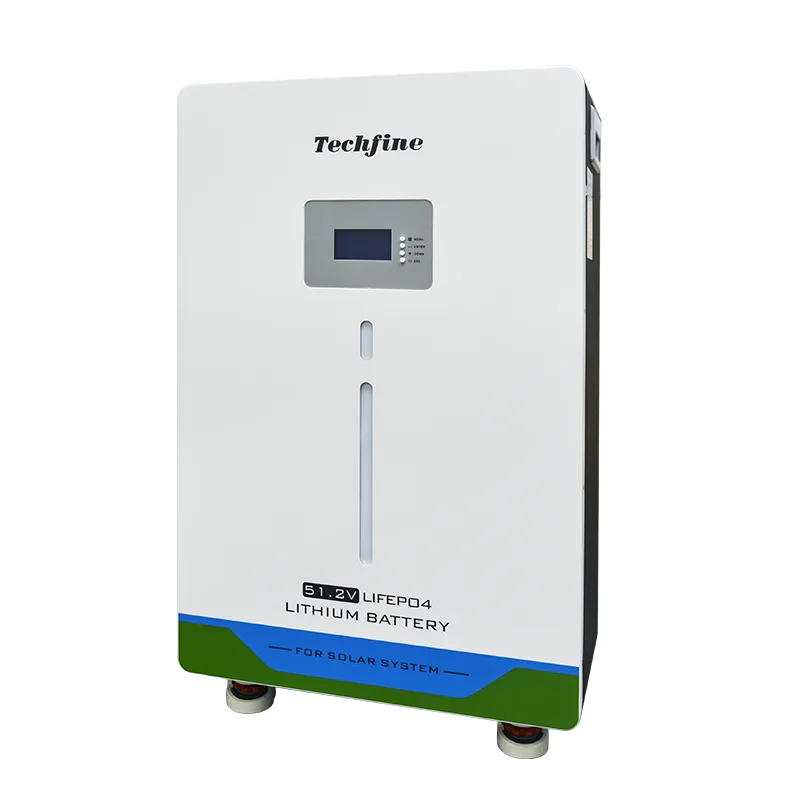

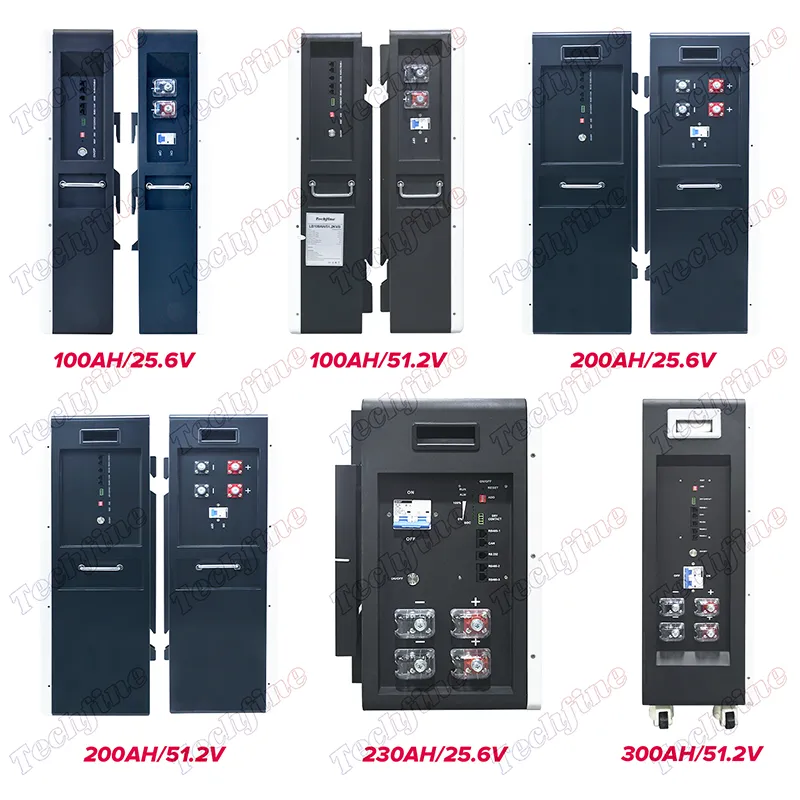

LB-series | 100Ah–300Ah 25.6V 51.2V
LiFePO4 Solar Storage Battery
Wall-mounted2.56kWh–15kWh
Main Feature
- Optional communication protocol：Victron、 Pylon、Deye、SMA、Growatt、Goodwe、Voltronic,
PCHNE、 Sofar、MEGAREVO、TBB - Large and full capacity lifepo4 battery with strong metal shell
- Charge balancing function
- SOC（State of Charge）、SOH（State of Health）Function
- LED status indicator function, LCD real-time display SOC function
- Low self discharge, and has a variety of sleep and wake up modes
- Adjustable overcurrent and short circuit protection, buzzer alarm
- High accuracy voltage（≤20mV）、current （≤2%@FS）、temperature（≤2℃）
- Parallel communication，RS485, CAN and software monitor
- Battery pack capacity and cycle count function
Product Details
100% Brand New Grade A Cells
Uses high-quality Grade A lithium cells with full capacity, each equipped with a QR code for traceability and strict quality control.
100% Brand New Grade A Cells
Uses high-quality Grade A lithium cells with full capacity, each equipped with a QR code for traceability and strict quality control.
100% Brand New Grade A Cells
Uses high-quality Grade A lithium cells with full capacity, each equipped with a QR code for traceability and strict quality control.
100% Brand New Grade A Cells
Uses high-quality Grade A lithium cells with full capacity, each equipped with a QR code for traceability and strict quality control.
100% Brand New Grade A Cells
Uses high-quality Grade A lithium cells with full capacity, each equipped with a QR code for traceability and strict quality control.
100% Brand New Grade A Cells
Uses high-quality Grade A lithium cells with full capacity, each equipped with a QR code for traceability and strict quality control.
Technical specification
Downloaded Specifications| Models | LB100AH/51.2VTA | LB230AH/51.2V | LB300AH/51.2V | LB100AH/25.6V | LB230AH/25.6V | LB300AH/25.6V |
|---|---|---|---|---|---|---|
| Available Capacity | 5120WH | 11776WH | 14336WH | 2560WH | 5888WH | 8038WH |
| Electrical Specifications | ||||||
| Cell Chemistry | LiFePO4 | |||||
| Maximum Continuous Discharge Current | 100A | 100A\200A | 200A | 100A | 200A | 200A |
| Rated Voltage | 51.2V|DC | 25.6V|DC | ||||
| Voltage Range | 43.2V-58.4V|DC | 21.6V-29.2V|DC | ||||
| Maximum Output Power | 5120W | 5120W\10240W | 10240W | 2560W | 5120W | |
| Charging Parameters | ||||||
| Maximum Charging Voltage | 58.4V±0.2V|DC | 29.2±0.2V|DC | ||||
| Recommended Charging Voltage | 57.6V±0.2V|DC | 28.8±0.2V|DC | ||||
| Recommended Charging Current | 50A | 100A\115A | 140A | 50A | 115A | 157A |
| Charging Current Limitation Function | 10A | 10A\20A | 20A | 10A | 20A | |
| Power Consumption & Efficiency | ||||||
| Low Power Consumption | Working self-consumption ≤50mA, low-power mode ≤200uA | |||||
| Battery depth of discharge (DOD) | ≥95% | |||||
| Cycle life (standard charge/discharge at room temperature) | ≥5000 cycles | ≥5000 cycles | ≥5000 cycles | ≥5000 cycles | ≥5000 cycles | ≥5000 cycles |
| Protection Features | ||||||
| Long-delay Over-current Protection for Charge/Discharge | BMS100: Alarm >105A, Protection >110A/1s BMS200: Alarm >205A, Protection >210A/1s |
|||||
| Instant Over-current Protection for Discharge | BMS100:≥150A/100ms BMS200:≥250A/100ms | |||||
| Over-voltage Protection Recovery | Discharge current >1A to recover (51.2V model: 59.2V, 25.6V model: 29.6V over-voltage point) | |||||
| Over-discharge Protection Recovery | Connect charger to activate (51.2V model: 43.2V, 25.6V model: 21.6V over-discharge point) | |||||
| Charge Over-current Protection Recovery | Discharge current >1A to recover | |||||
| Over-discharge current protection release | Released when charging current >1A | |||||
| Short-circuit protection function Present | automatically released during charging | |||||
| MOS high-temperature protection | MOSFET over-temperature protection | |||||
| Cell temperature protection | Protection for low cell temperature (-20°C) and high temperature (70°C) | |||||
| Ambient temperature alarm | Low-temperature protection -20°C; high-temperature protection 75°C | |||||
| Cell failure protection | Single-cell voltage difference >1V | |||||
| Display & Monitoring | ||||||
| Display | LED light strip indicator + LCD display | LCD display | ||||
| Communication & Expansion | ||||||

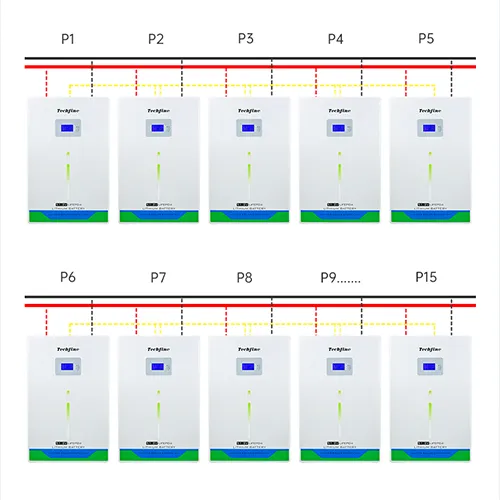

| Modules connection | 1-15 | |||||
| Communication | Standard RS232, RS485, CAN | |||||
| Environmental Ratings | ||||||
| Protection rating | IP21 | |||||
| Operating temperature range | Discharge: -10°C to +50°C; Charge: +0°C to +60°C | |||||
| Storage temperature | >1 month: 0–35°C; ≤1 month: -20–45°C | |||||
| Mechanical Specifications | ||||||
| Terminal type | M8 | |||||
| Depth × Width × Height (mm) | 720*480*170 | 785*510*293 | 755*490*253 | 532*347*170 | 475*420*255 | 476*496*255 |
| Weight (net weight, for reference)KG | 54.5 | 100 | 116 | 30 | 51 | 65 |
