AUXILIARY POWER · 1.28–4.019 kWh
LP Series
12.8 V LiFePO₄ Battery
Stored energy for the places you take power. LP combines a compact ABS enclosure, a built-in status display and four capacity choices. Use one 12.8 V battery, or configure a bank of up to four matching batteries for your auxiliary power system.
ABS enclosure · Built-in LCD · IP64
Select a model to see its ratings below.
COMPACT AUXILIARY STORAGE
Take stored energy
beyond the mains.
Build auxiliary power for a cabin, trailer or RV. LP stores energy in a compact ABS enclosure, with an LCD for battery status, voltage and current. Choose the storage capacity for your equipment and available space.
ABS
Enclosure material
IP64
Enclosure protection

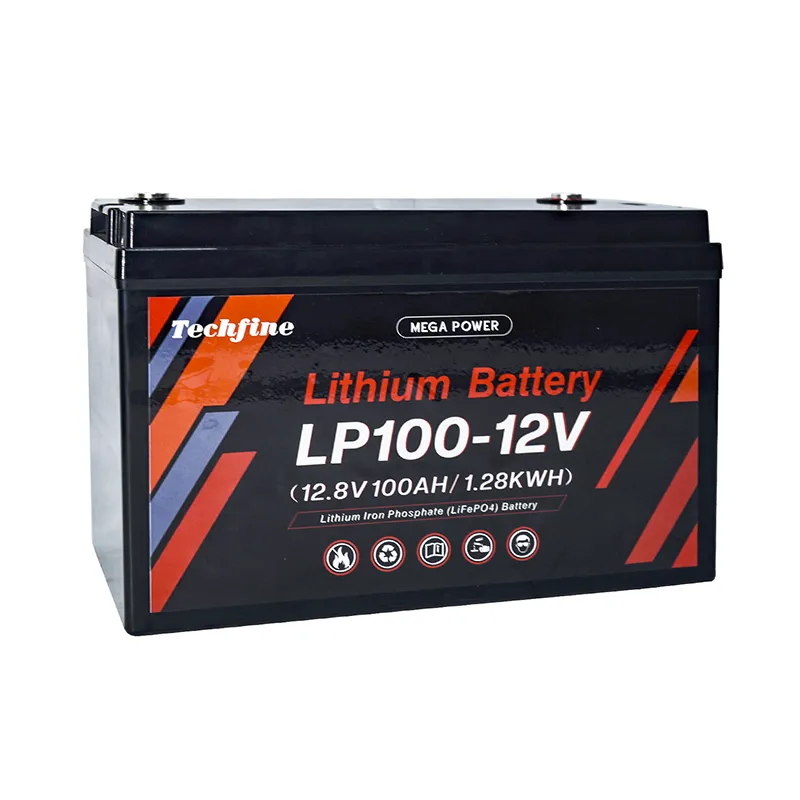

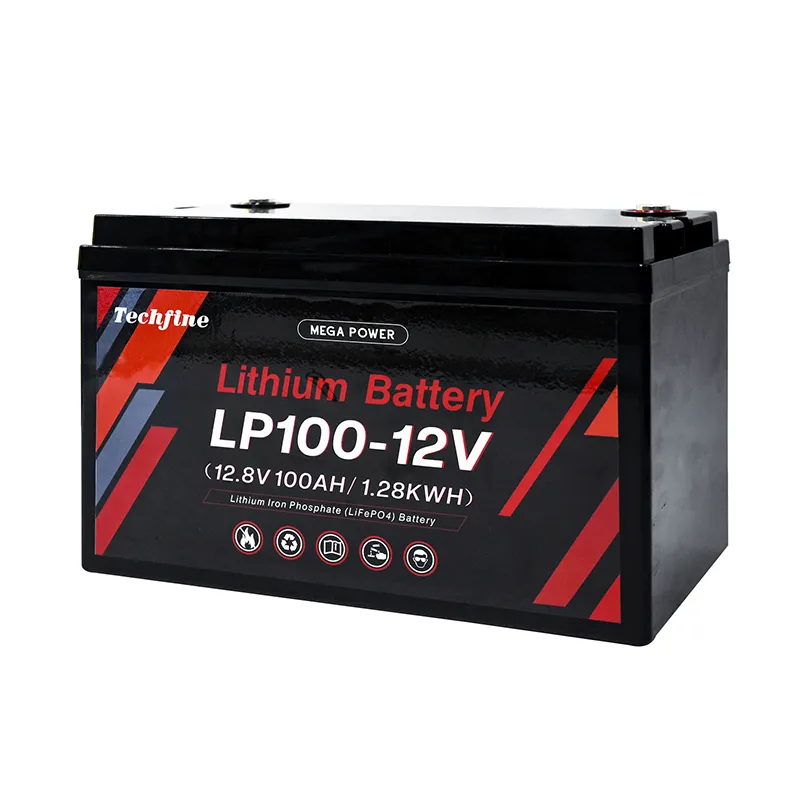

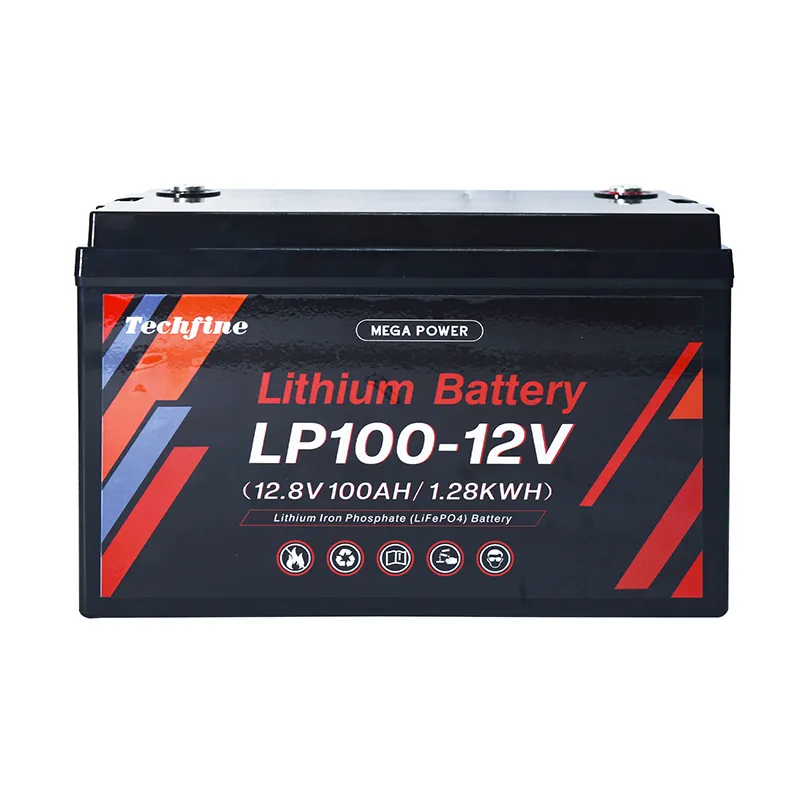

LP100 · Compact ABS enclosure with top-mounted terminals
SERIES · PARALLEL · MIXED
One battery format.
Three ways to build a bank.
Keep 12.8 V and add capacity, increase the bank voltage, or combine both approaches. Every arrangement uses a maximum of four matching batteries in total.
12.8 V
Nominal bank voltage
Four in parallel
Add the capacity of four matching batteries while keeping the voltage of one module.
12.8 V
12.8 V
12.8 V
12.8 V
51.2 V
Nominal bank voltage
Four in series
Add the voltage of four 12.8 V batteries. A two-battery series bank provides 25.6 V.
12.8 V
12.8 V
12.8 V
12.8 V
25.6 V
Nominal bank voltage
Two series pairs, in parallel
Two batteries form each 25.6 V pair. Put the two matching pairs in parallel to add capacity. Four batteries total.
12.8 V
12.8 V
12.8 V
12.8 V
Use matching models, capacity and state of charge. Select the charger for the complete bank voltage.
READY FOR YOUR AUXILIARY SYSTEM
Choose the capacity.
Match the charge.
01
Read it on the battery
The built-in LCD shows battery status, voltage and current. Bluetooth is optional on selected configurations.
02
Match the charging settings

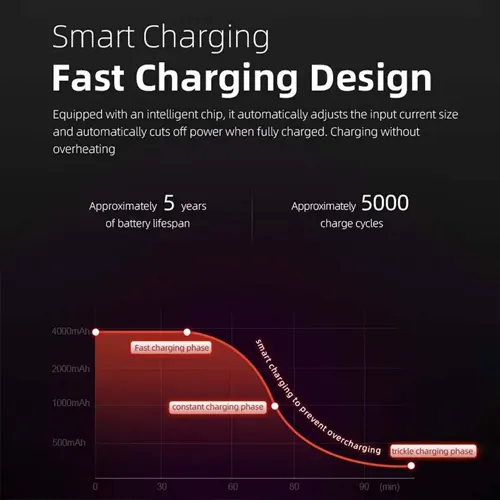

One battery uses a recommended 14.4 ± 0.2 V DC charging voltage. Charging current varies with the LP model.
03
Choose auxiliary loads
Use LP for stored auxiliary power. It is designed for energy storage rather than engine starting.
THE DETAILS, SIDE BY SIDE
Technical specifications
Compare 4 models by energy, discharge current and space. Every model has a rated voltage of 12.8 V.
Scroll sideways to compare all models.
| Specification | LP100 · 12.8 V | LP230 · 12.8 V | LP300 · 12.8 V | LP314 · 12.8 V |
|---|---|---|---|---|
| Energy & output | ||||
| Available energy | 1280 Wh | 2944 Wh | 3584 Wh | 4019 Wh |
| Rated battery voltage | 12.8 V | 12.8 V | 12.8 V | 12.8 V |
| Maximum continuous discharge current | 100 A | 200 A | 200 A | 200 A |
| Maximum battery output | 1280 W | 2560 W | 2560 W | 2560 W |
| Operating voltage range | 10–14.6 V DC | 10–14.6 V DC | 10–14.6 V DC | 10–14.6 V DC |
| Charging | ||||
| Maximum charging voltage | 14.6 ± 0.2 V DC | 14.6 ± 0.2 V DC | 14.6 ± 0.2 V DC | 14.6 ± 0.2 V DC |
| Recommended charging voltage | 14.4 ± 0.2 V DC | 14.4 ± 0.2 V DC | 14.4 ± 0.2 V DC | 14.4 ± 0.2 V DC |
| Recommended charging current | 50 A | 115 A | 140 A | 157 A |
| Battery management | ||||
| Cell chemistry | LiFePO₄ | LiFePO₄ | LiFePO₄ | LiFePO₄ |
| Cycle count | ≥6000 cycles (standard charge / discharge at room temperature) | ≥6000 cycles (standard charge / discharge at room temperature) | ≥6000 cycles (standard charge / discharge at room temperature) | ≥6000 cycles (standard charge / discharge at room temperature) |
| Depth of discharge | ≥95% | ≥95% | ≥95% | ≥95% |
| Low-power consumption | ≤45 µA | ≤45 µA | ≤45 µA | ≤45 µA |
| Protection | Overcharge, overcurrent, overvoltage, overdischarge, short circuit and high temperature | Overcharge, overcurrent, overvoltage, overdischarge, short circuit and high temperature | Overcharge, overcurrent, overvoltage, overdischarge, short circuit and high temperature | Overcharge, overcurrent, overvoltage, overdischarge, short circuit and high temperature |
| Charge balancing | Included | Included | Included | Included |
| Display & connections | ||||
| Display | Built-in LCD: battery status, voltage and current | Built-in LCD: battery status, voltage and current | Built-in LCD: battery status, voltage and current | Built-in LCD: battery status, voltage and current |
| Bluetooth | Optional on selected configurations | Optional on selected configurations | Optional on selected configurations | Optional on selected configurations |
| Maximum batteries in one bank | 4 in total | 4 in total | 4 in total | 4 in total |
| Connection types | Series, parallel or mixed; use matching batteries | Series, parallel or mixed; use matching batteries | Series, parallel or mixed; use matching batteries | Series, parallel or mixed; use matching batteries |
| Enclosure | ||||
| Casing material | ABS | ABS | ABS | ABS |
| Ingress protection | IP64 | IP64 | IP64 | IP64 |
| Installation & environment | ||||
| Net weight | 10 kg | 20 kg | 26 kg | 26.5 kg |
| Dimensions | 339 × 185 × 218 mm | 384 × 204 × 270 mm | 384 × 204 × 270 mm | 384 × 204 × 270 mm |

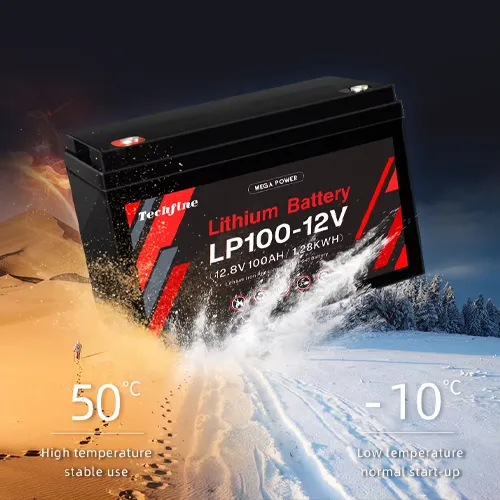

| Discharge temperature | −10°C to +50°C | −10°C to +50°C | −10°C to +50°C | −10°C to +50°C |
| Charge temperature | 0°C to +60°C | 0°C to +60°C | 0°C to +60°C | 0°C to +60°C |
| Storage temperature | 0–35°C for >1 month; −20–45°C for ≤1 month | 0–35°C for >1 month; −20–45°C for ≤1 month | 0–35°C for >1 month; −20–45°C for ≤1 month | 0–35°C for >1 month; −20–45°C for ≤1 month |
BEFORE YOU CHOOSE
A few useful answers.
How many LP batteries can I connect?
Use a maximum of four batteries in total, whether the bank is connected in series, parallel or a mixed arrangement. Use matching models with the same capacity and state of charge.
Can I use LP as an engine-starting battery?
LP is designed for auxiliary energy storage, such as cabin, trailer and RV power. Use it for the auxiliary electrical system, not engine starting.
What changes between series and parallel connections?
Parallel connection keeps the 12.8 V nominal voltage and adds capacity. Series connection adds voltage: two batteries provide 25.6 V and four provide 51.2 V. Two series pairs in parallel provide 25.6 V. Every arrangement is limited to four batteries total.
What charging voltage does one LP battery use?
A single 12.8 V LP battery has a recommended charging voltage of 14.4 ± 0.2 V DC and a maximum of 14.6 ± 0.2 V DC. Match charger voltage to the complete bank and charging current to the selected model.
Is Bluetooth included?
Bluetooth is optional on selected LP configurations. The built-in LCD provides local readings of battery status, voltage and current without that option.
