Solar Inverter SKD | 3kW–11kW
Main Feature
- High-frequency inverter with high efficiency and lightweight design
- Output power factor PF = 1
- Supports lithium battery activation and wake-up function
- Parallel expansion supported, up to 9 units operating simultaneously
- Real-time load power display for improved user visibility
- Pure sine wave output, compatible with various load types
- Output short-circuit protection
- Multiple adjustable parameters to meet user requirements
- Ideal for all-in-one energy storage systems as a core inverter module
Product Details

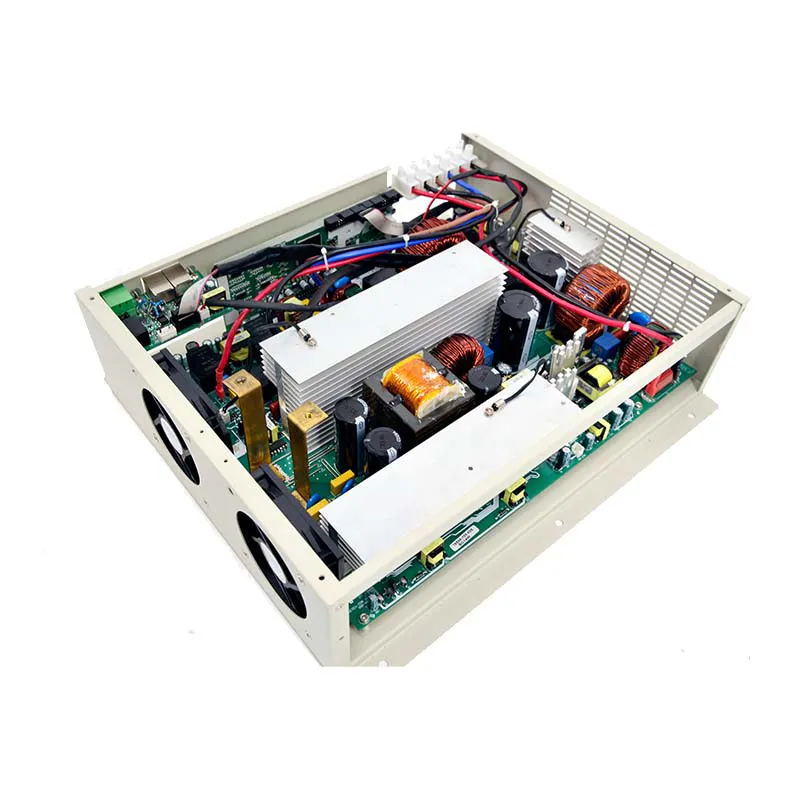

Compact Design, Compatible with Various Lithium Battery Packs
Small and space-efficient design that fits easily into tower-mounted, floor-standing, wall-mounted, and rack-mounted battery cabinets.

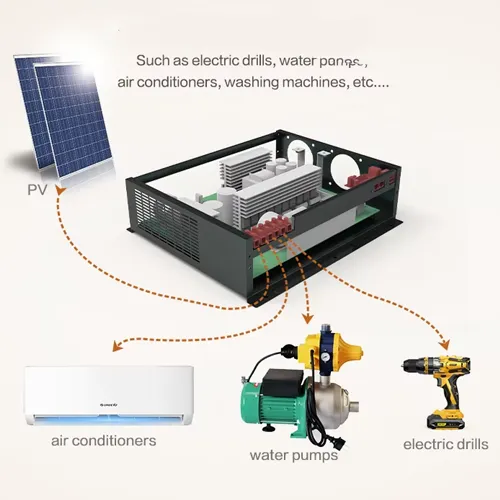

Strong Load Capacity for Inductive Appliances
Easily powers inductive loads such as electric drills, water pumps, air conditioners, and washing machines.
Smart APP Monitoring for Remote Management
Supports WiFi or remote data transmission. The mobile APP allows real-time monitoring of inverter and battery system parameters anytime, anywhere.
Advanced AI Power Management Algorithm
Optimizes charging and discharging performance, activates lithium battery efficiency, reduces battery aging, and extends battery lifespan by up to one-third.
Built-in Lithium Battery Activation Function
Automatically activates lithium batteries under low-voltage conditions, saving time and improving ease of use.
Engineered for Harsh Environments Worldwide
Designed to withstand high temperatures, dust, humidity, and high-salt conditions—ideal for Africa, the Middle East, and Southeast Asian regions.
Technical Specifications
| Model | GP3024SMH | GP4024SMH | GP5548SMH | GP6248SMH | GP8648SMH | GP11048SMH |
|---|---|---|---|---|---|---|
| AC Input | ||||||
| Input Formation | L+N+PE | |||||
| AC Input | 220/230/240VAC | |||||
| Input Voltage Range | 90-280VAC±3V(Normal Mode) 170-280VAC±3V (UPS Mode) | |||||
| Frequency | 50/60Hz(Adaptive) | |||||
| Inverter Output | ||||||
| Rated Power | 3000W | 4000W | 5500W | 6200W | 8600W | 11000W |
| Dual Output Power | 3600W | 4500W | 6500W | 6500W | 11000W | 12000W |
| Output Voltage | 220/230/240VAC±5% | |||||
| Output Frequency | 50/60Hz±0.1% | |||||
| Output Wave | Pure Sine Wave | |||||
| Transfer Time(Adjustable) | 10ms for Computer Equipment,20ms for Household Equipment | |||||
| Peak Power | 6000VA | 8000VA | 11000VA | 12400VA | 17200VA | 22000VA |
| Overload Ability | Battery Mode: 21s@105%~150% Load; 11s@150%~200% Load; 400ms@>200% Load | |||||
| Grid connected Operation | ||||||
| Output Voltage | 220/230/240VAC | |||||
| Grid Voltage Range | 170-265VAC | |||||
| Grid Frequency Range | 49-51±1Hz/59-61±1Hz | |||||
| Output Current | 13A | 15.7A | 21.7A | 23.9A | 26.9A | 47.8A |
| Power Factor Range | >0.99 | |||||
| Max efficiency (DC/AC) | 0.98 | |||||
| Battery Charging | ||||||
| Rated Voltage | 24VDC | 24VDC | 48VDC | 48VDC | 48VDC | 48VDC |
| Constant Charging Voltage | 28.2VDC | 28.2VDC | 56.4VDC | 56.4VDC | 56.4VDC | 56.4VDC |
| Float Charging Voltage | 27VDC | 27VDC | 54VDC | 54VDC | 54VDC | 54VDC |
| PV Charging Method | MPPT | MPPT | MPPT | MPPT | 2*MPPT | 2*MPPT |
| PV Input & Charging | ||||||
| Max PV Input | 5000W | 6500W | 8500W | 8500W | 2*6500W | 2*7500W |
| MPPT Tracking Range | 60~500VDC | 90~500VDC | ||||
| MAX PV Input Voltage | 500VDC | |||||
| Maximum pulse PV input current | 27A | 36A | 36A | 36A | 36A/36A | 36A/36A |
| Maximum rated PV input current | 18A | 27A | 27A | 27A | 27A/27A | 27A/27A |
| MAX PV Charge Current | 100A | 120A | 100A | 120A | 150A | 150A |
| MAX AC Charge Current | 60A | 100A | 100A | 100A | 150A | 150A |
| MAX Charge Current | 100A | 120A | 100A | 120A | 150A | 150A |
| Communication & Display | ||||||
| LCD | Can display operating mode/load/input/output | |||||
| RS232 | Baud Rate 2400 | |||||
| Expansion Slot Communication Interface | Lithium Battery BMS Communication Card,WIFI 2×5PIN/Pitch2.54mm | |||||
| Parallel Interface | Not Support Parallel | Support Parallel | ||||
| Environmental | ||||||
| Operating Temperature | -10°C~50°C | |||||
| Storage Temperature | -15°C~60°C | |||||
| Ork Altitude | No more than 1000m, If 1000m<,Rate power will lower, MAX 4000m, Refer IEC62040 | |||||
| Operating Environment Humidity | Non Condensing | |||||
| Noise | ≤50dB | |||||
| Weight(KG) | 6.58 | 6.6 | 7.78 | 7.78 | 7.78 | 15.3 |
