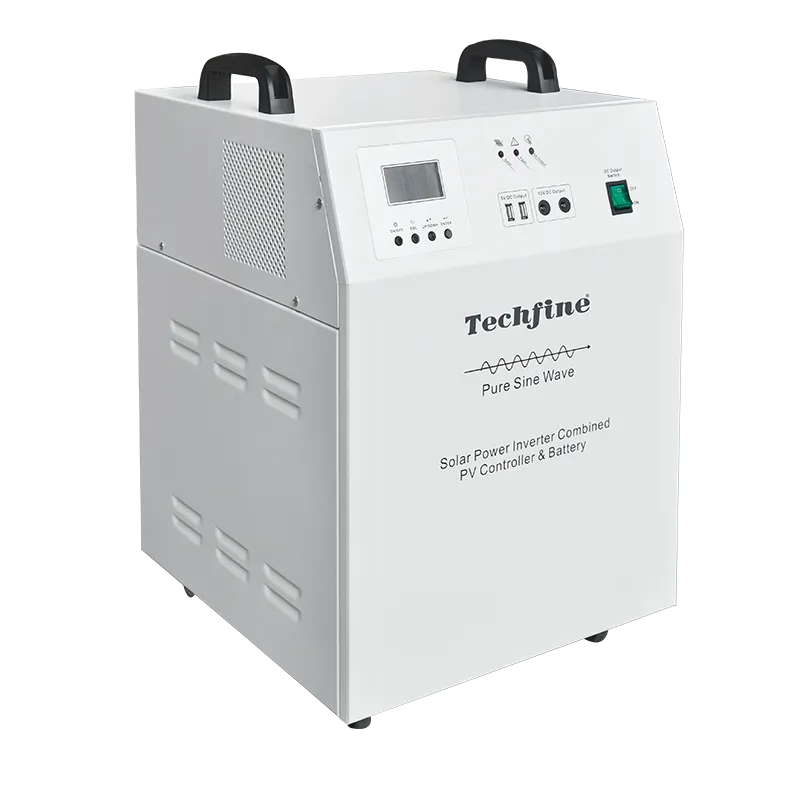

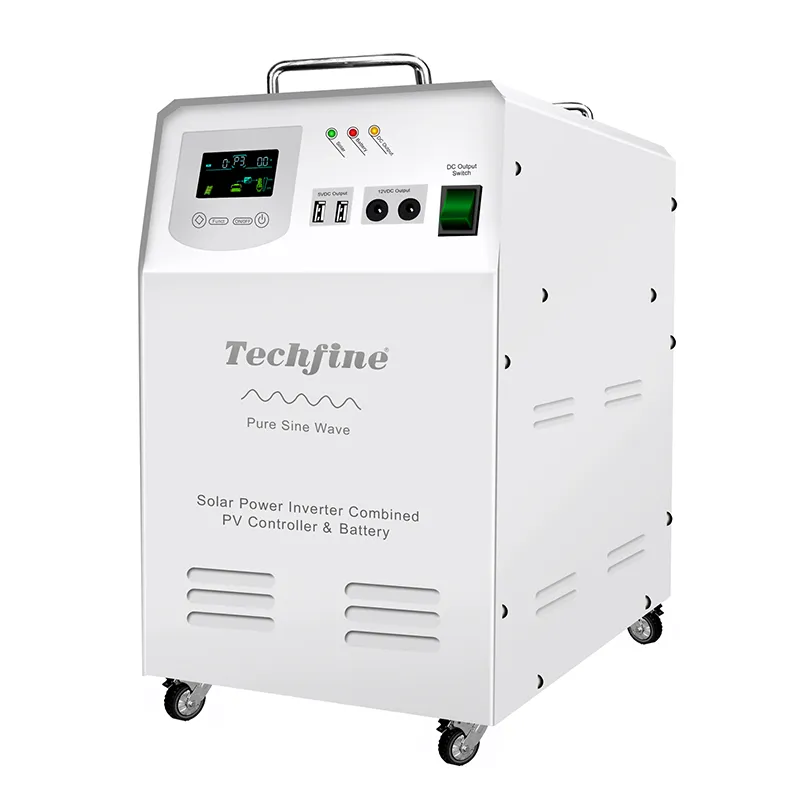

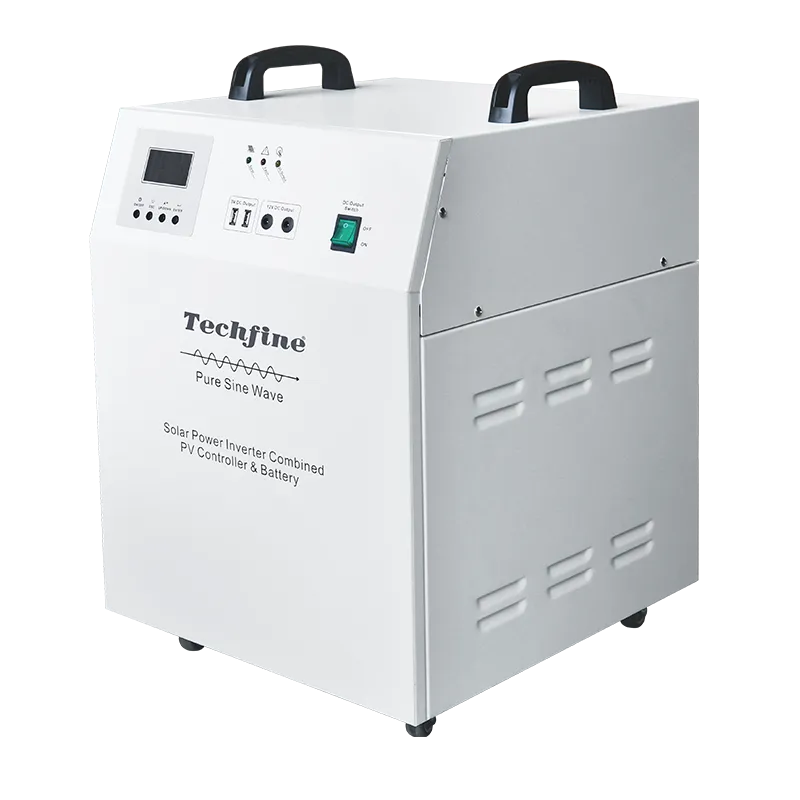

SP-series | 1kWh–4kWh 1kW–2kW
All-in-one Energy Storage System
MoveableInterfaces are Complete
Main Feature
- External battery design, can be loaded under the battery mode for a long time
- Starting Up Automatically when mains input
- Two working models
- High current charging function
- Wide AC input range
- Shutdown charging function
- High efficiency design for optimized battery performance
- Compatible generator
- Monitor the working status through the display
- Automatically adjust the mains boost, buck, and stabilize the voltage output
- Lithium battery optional
- 110V/120V Output Available
Product Details
High Efficiency MPPT Technology
Optimized solar charging with >98% conversion efficiency for maximum energy harvest.
High Efficiency MPPT Technology
Optimized solar charging with >98% conversion efficiency for maximum energy harvest.
High Efficiency MPPT Technology
Optimized solar charging with >98% conversion efficiency for maximum energy harvest.
High Efficiency MPPT Technology
Optimized solar charging with >98% conversion efficiency for maximum energy harvest.
High Efficiency MPPT Technology
Optimized solar charging with >98% conversion efficiency for maximum energy harvest.
High Efficiency MPPT Technology
Optimized solar charging with >98% conversion efficiency for maximum energy harvest.
Technical specification
Downloaded Specifications| Model | SP1012-100LP | SP1012-100P | SP1524-100LM | SP2024-100LM | SP1524-100LM | SP2024-170LM |
|---|---|---|---|---|---|---|
| BATTERY | ||||||
| Battery type | Lead Acid Battery | Lithium Battery | ||||
| Battery Voltage | 12.8V | 12V | 25.6V | 24V | ||

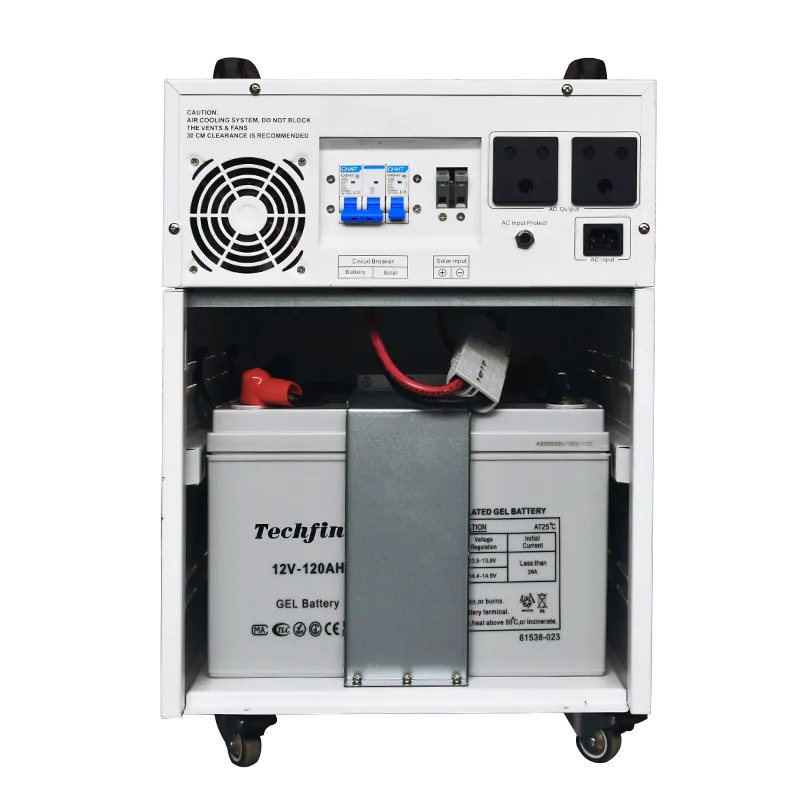

| Optional In-built battery specification | 100AH/12.8V or 170AH/12.8V | 100AH/12V or 120AH/12V | 100AH/12.8V*2 or 170AH/12.8V*2 | 100AH/12V*2 or 170AH/12V*2 |
||
| INVERTER | ||||||
| Rated Power | 1000W | 1000W | 1500W | 2000W | 1500W | 2000W |
| Output Voltage | 220VAC±10%(110VAC±10%) | |||||
| Output Frequency | 50HZ/60HZ±1% | |||||
| Output Waveform | Pure Sine Wave | |||||
| Charge by a mians supply | ||||||
| Rated Voltage | 220VAC±10%(110VAC±10%) | |||||
| AC Charge Current | 20A | 12A(10-20A) | 25A | 30A | 12A(10-18A) | |
| Solar Input | ||||||
| Maximum Photovoltaic Voltage(VDC) | ≤50V | ≤50V | ≤145VDC | ≤145VDC | ||
| Charge Voltage(VDC) | 14.6V | 13.7V | 29.2V | 27.4V | ||
| PV Rated Charge Current(A) | PWM 30A | PWM 30A | MPPT 30A | MPPT 30A | ||
| Maximum Power(Wp) | 400Wp | 360Wp | 800Wp | 800Wp | ||
| DC Output | ||||||
| 5VDC USB Output Port | 2units/MAX 2A | |||||
| 12VDC Output Port | 2 DC Ports (MAX 2A) | |||||
| Environmental Parameters | ||||||
| Ambient Temperature for operation | 0-40°C | |||||
| Temperature for storage | -25-55°C | |||||
| Operation/Storage Conditions | 0-90%(no condensation) | |||||
