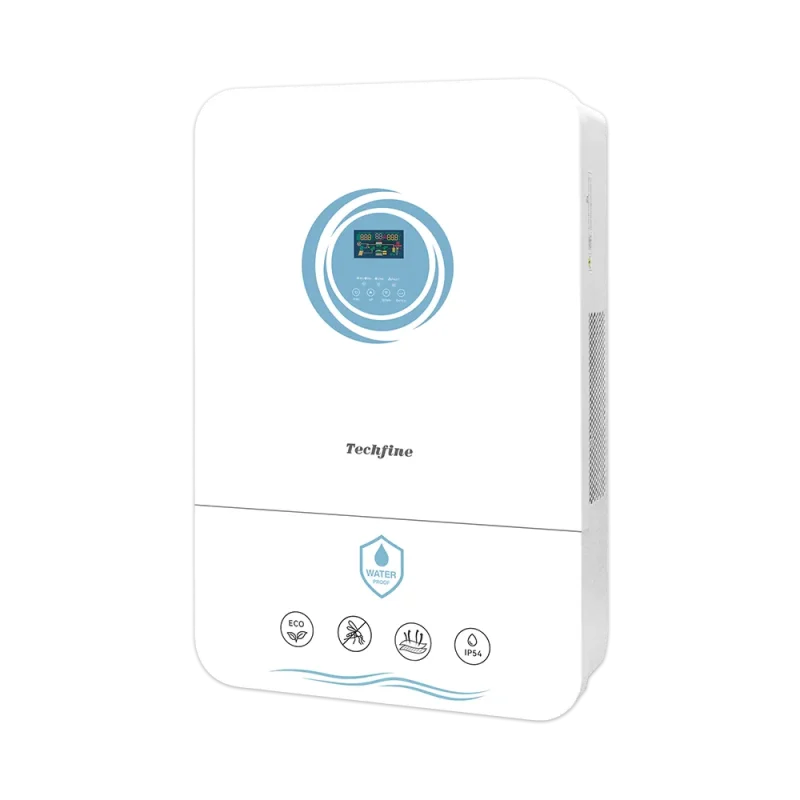

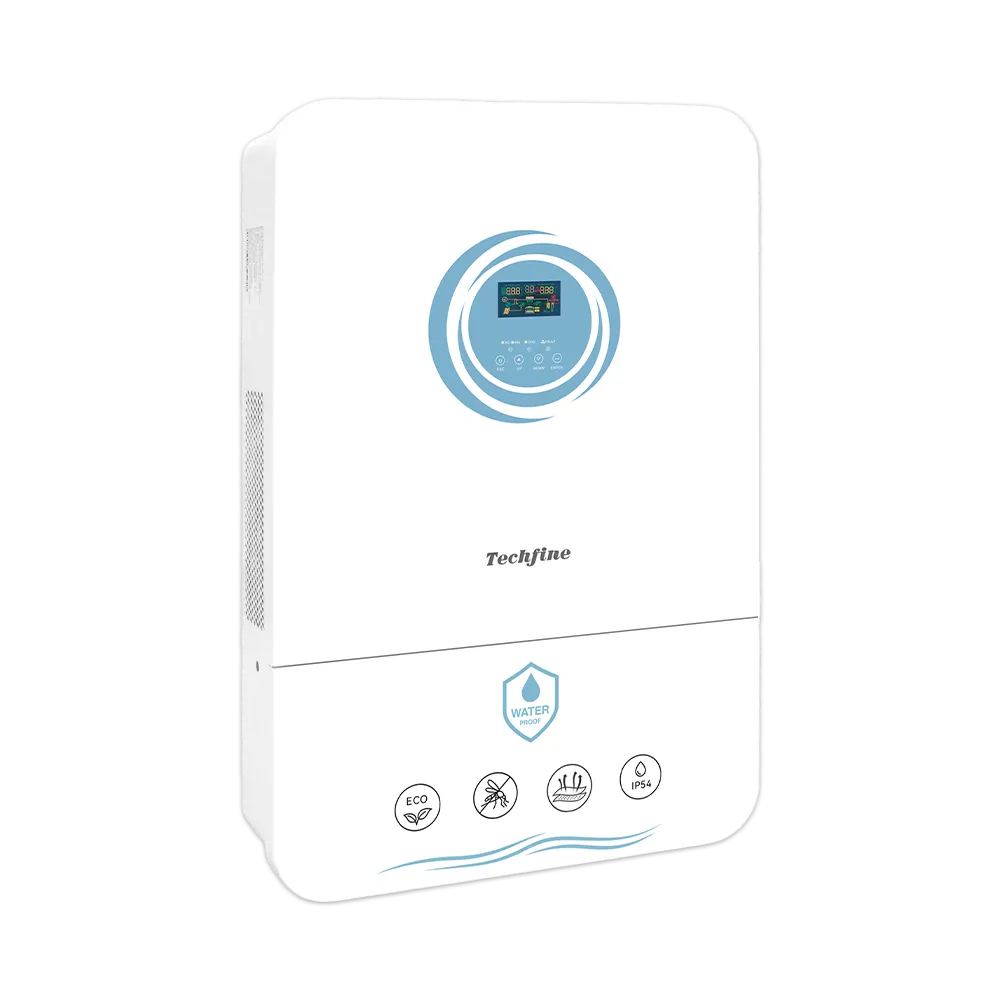

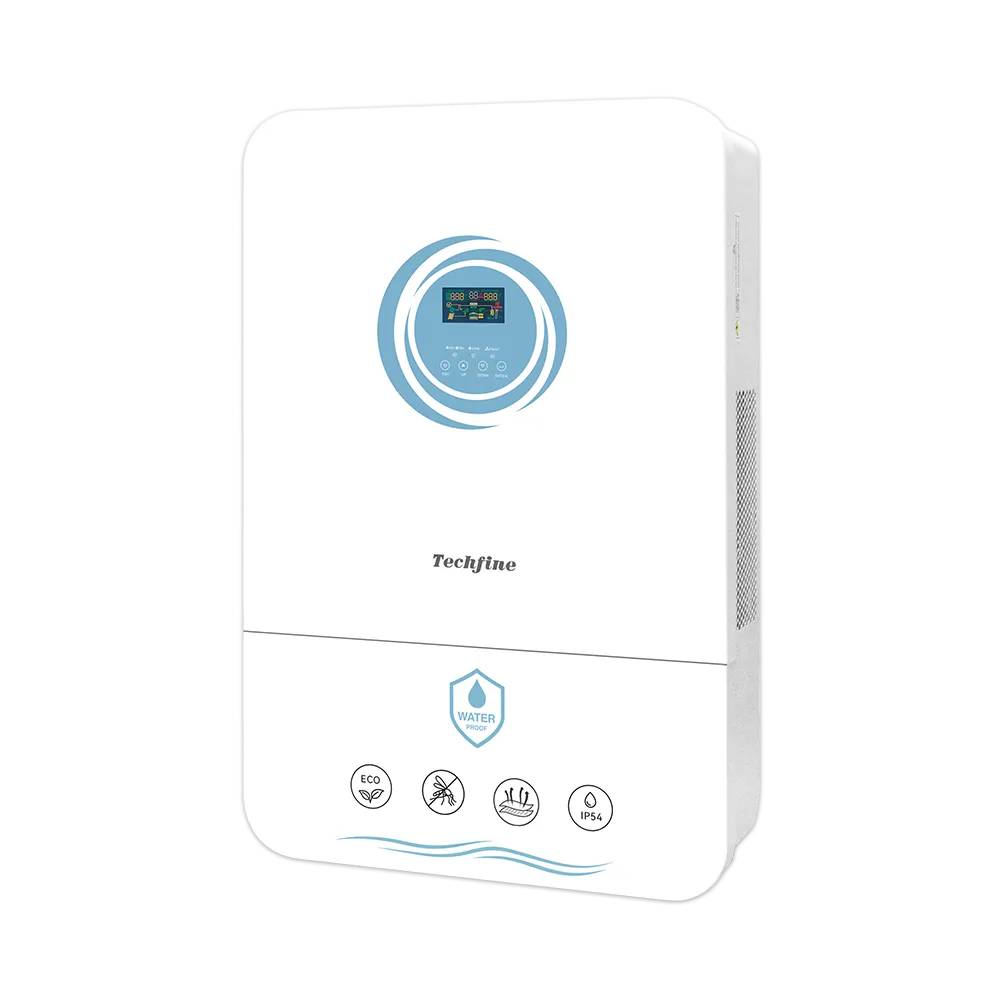

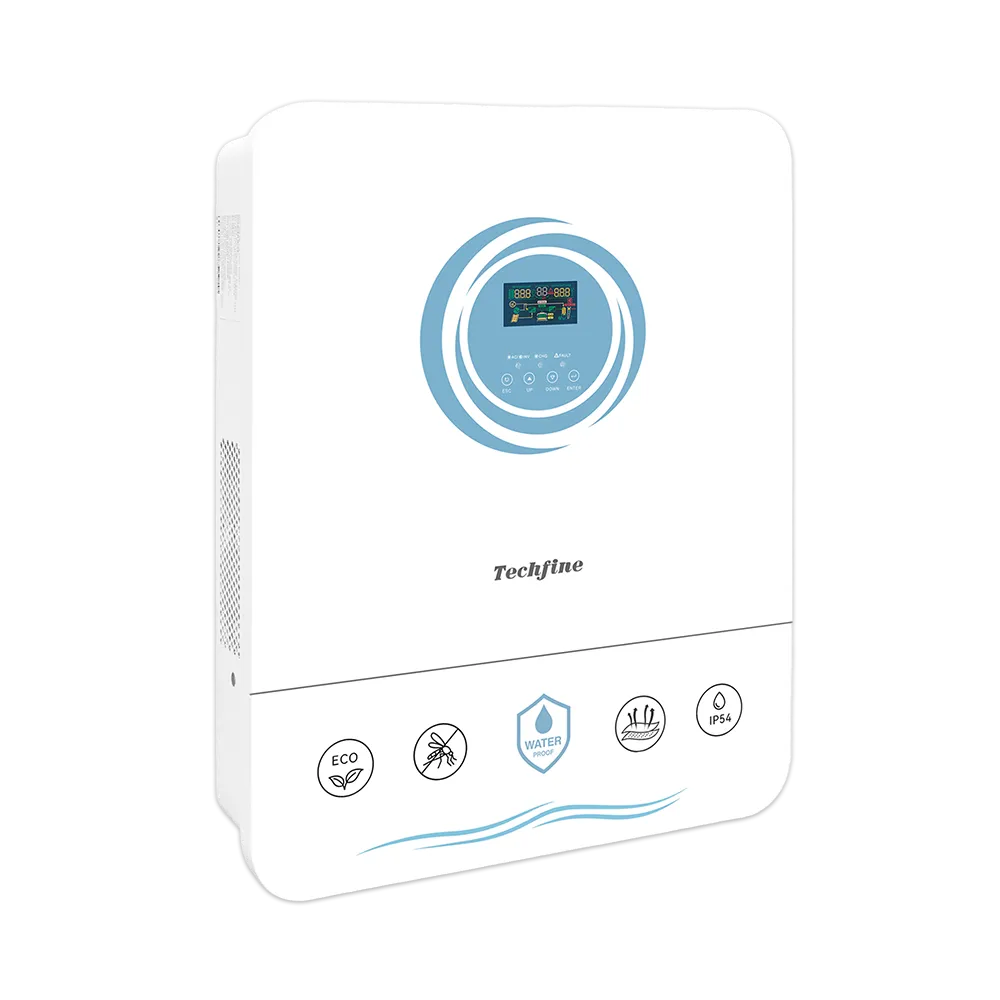

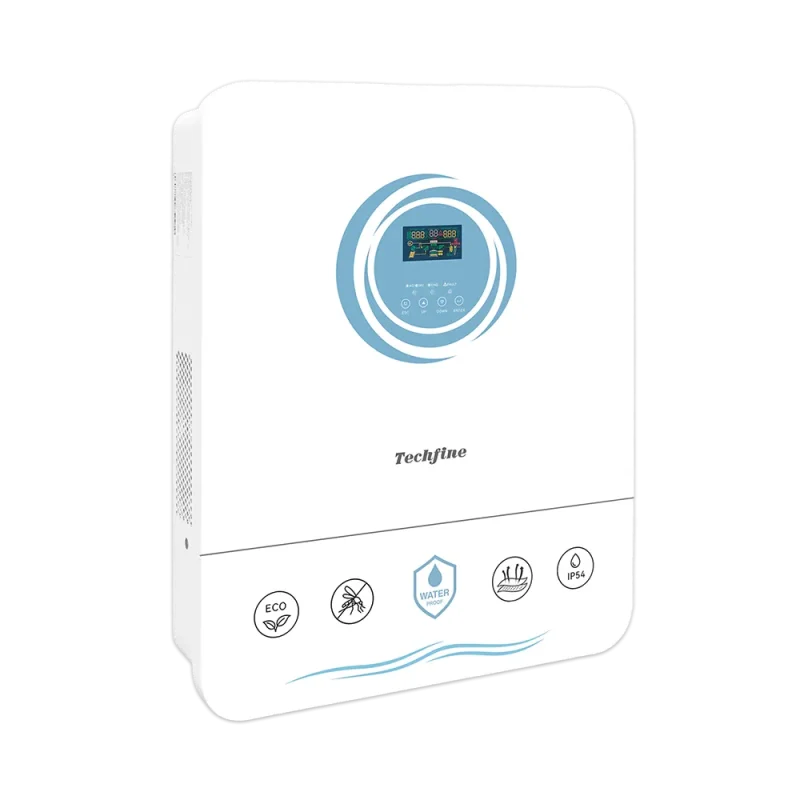

TD-series | 4kW–11kW
Hybrid Solar Inverter
IP54 RatingDual AC Output

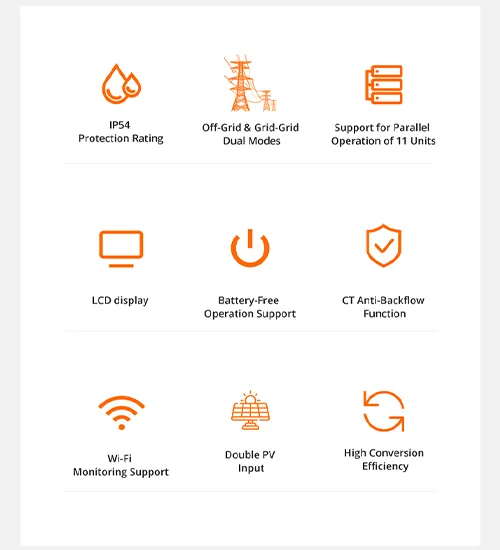

Main Feature
- Higher PV input current for greater power generation
- Stronger inverter performance under PV mode
- Dual AC output as standard for flexible load connection

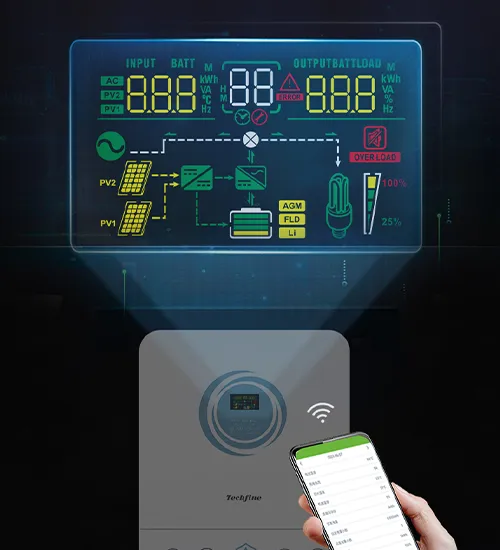

- Optional touch screen panel for intuitive operation

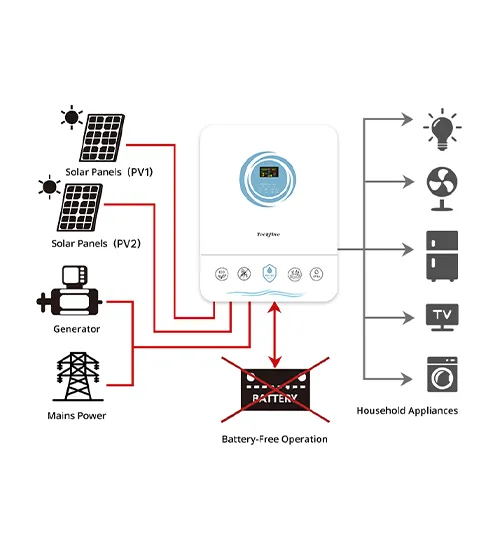

- Optimized PV utilization with grid-assisted operation
- EMI filter for low interference and stable performance
- Built-in on/off-grid function as standard

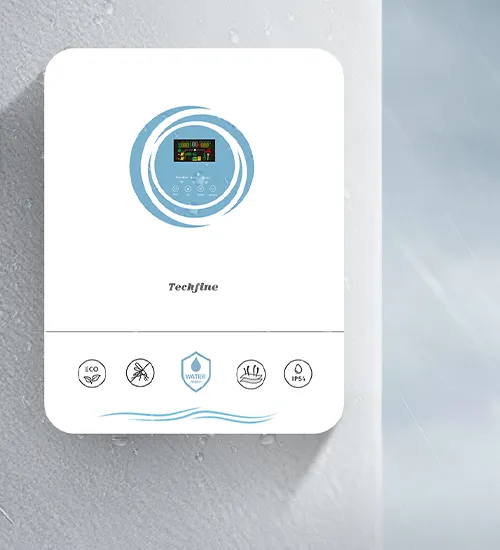

- IP54-rated protection for outdoor reliability

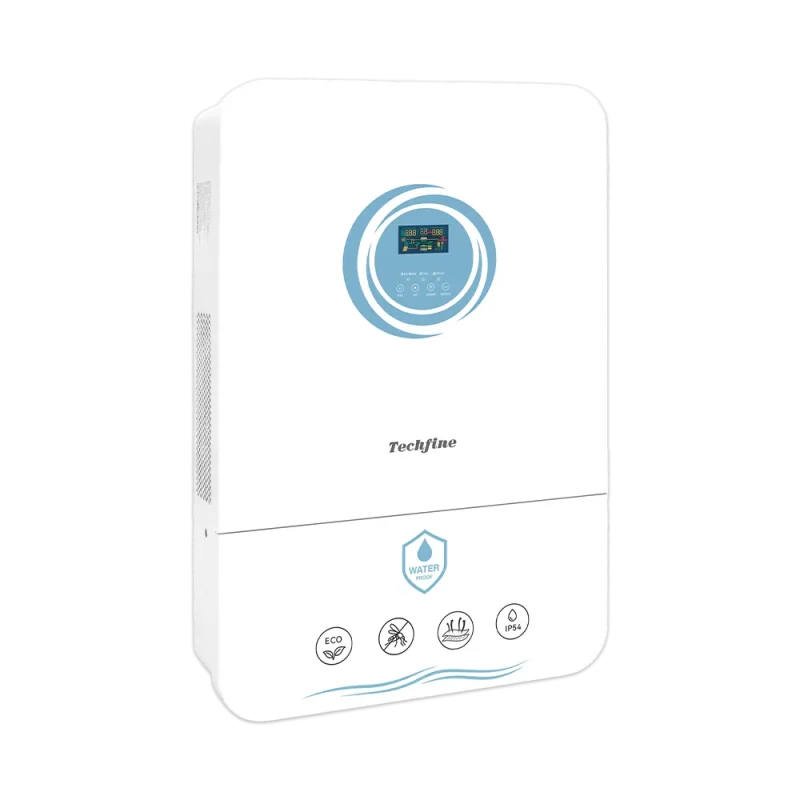

Product Details
Full-Featured & High-Power
Crafted with Ingenious R&D, Precision Manufacturing, and Professional Services.
Full-Featured & High-Power
Crafted with Ingenious R&D, Precision Manufacturing, and Professional Services.
Full-Featured & High-Power
Crafted with Ingenious R&D, Precision Manufacturing, and Professional Services.
Full-Featured & High-Power
Crafted with Ingenious R&D, Precision Manufacturing, and Professional Services.
Full-Featured & High-Power
Crafted with Ingenious R&D, Precision Manufacturing, and Professional Services.
Full-Featured & High-Power
Crafted with Ingenious R&D, Precision Manufacturing, and Professional Services.
Technical specification

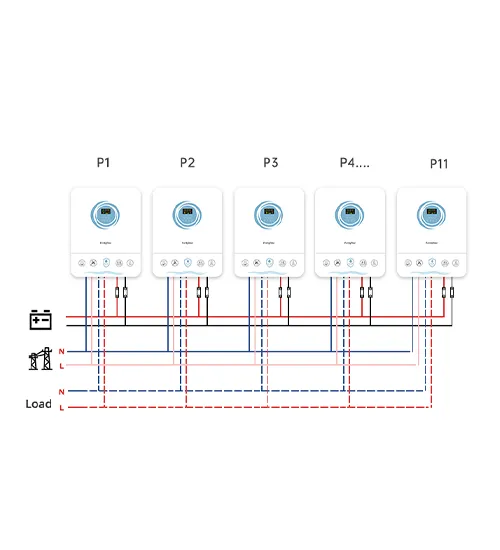

Downloaded Specifications| Model | TD4024SMH | TD6248SMH | TD11048SMH |
|---|---|---|---|
| Input Formation | L+N+PE | ||
| AC Input | 220/230/240VAC | ||
| Input Voltage Range | 90-280VAC±3V(Normal Mode) 170-280VAC±3V (UPS Mode) | ||
| Frequency | 50/60Hz(Adaptive) | ||
| Rated Power | 4000W | 6200W | 11000W |
| Dual Output Power | 4500W | 6500W | 15000W |
| Transfer Time(Adjustable) | 10ms for Computer Equipment, 20ms for Household Equipment | ||
| AC Output | |||
| Output Voltage(AC) | 220/230/240VAC±5% | ||
| Output Frequency | 50/60Hz±0.1% | ||
| Output Wave | Pure Sine Wave | ||
| Peak Power | 8000VA | 12400VA | 22000VA |
| Overload Ability | Battery Mode: 11s@105%~150% Load; 2s@150%~200% Load; 400ms@>200% Load | ||
| Output Voltage | 220/230/240VAC | ||
| Output Current | 17.4A | 26.9A | 47.8A |
| Power Factor Range | >0.99 | ||
| Grid / AC Charger | |||
| Grid Voltage Range | 170-265VAC | ||
| Grid Frequency Range | 49-51±1Hz/59-61±1Hz | ||
| Max efficiency (DC/AC) | >98% | ||
| PV Input | |||
| Max PV Input Power | 6500W | 8500W | 2*7500W |
| PV Input Voltage Range | 60~500VDC | 60~500VDC | 90~500VDC |
| MAX PV Input Voltage | 500VDC | 500VDC | 500VDC |
| MAX PV Input Current | 27A | 27A | 27A/27A |
| Charging (AC + PV) | |||
| MAX PV Charge Current | 120A | 120A | 150A |
| MAX AC Charge Current | 100A | 100A | 150A |
| MAX Charge Current | 120A | 120A | 150A |
| Rated Voltage | 24VDC | 48VDC | 48VDC |
| Constant Charging Voltage | 28.2VDC | 56.4Vdc | 56.4Vdc |
| Float Charging Voltage | 27VDC | 54VDC | 54VDC |
| PV Charging Method | MPPT | MPPT | 2*MPPT |
| Communication | |||
| LCD | Can display operating mode/load/input/output | ||
| RS232 | 5PIN/Pitch2.54mm,Baud Rate 2400 | ||
| Expansion Slot Communication Interface | Lithium Battery BMS Communication Card,WIFI 2×5PIN/Pitch2.54mm | ||
| Parallel Interface | Not Support Parallel | Support Parallel | |
| Environmental | |||
| Operating Temperature | 0°C~40°C | ||
| Storage Temperature | -15°C~60°C | ||
| Ork Altitude | No more than 1000m, If 1000m<,Rate power will lower, MAX 4000m, Refer | ||
| Operating Environment Humidity | 20%~95% Non Condensing | ||
| Noise | <50dB | ||
| Protection level | IP54 | ||
