VS Pro Plus-series 5kW/10kW off-grid solar inverter with Transformer-based Support Parallel | Techfine

VS Pro+ Series · Product gallery

48 V SYSTEMS · 5 / 10 kW

VS Pro+ Series
Parallel Backup Inverter

Start with 5 or 10 kW. Build out with matching units. VS Pro+ brings transformer-based backup, adjustable charging and up to nine-unit parallel operation to a 48 V battery system.

Built-in transformer   ·   Up to 9 units   ·   Optional 120 A MPPT

Explore 2 models

Select a model to see its ratings below.

5kWRated output
48VBattery system
50AMaximum AC charging

48 V PARALLEL SYSTEMS

One unit to start.
Room to build out.

Choose 5 or 10 kW for a standalone system, or connect matching VS Pro+ units in parallel. The built-in transformer, battery charging and power conversion stay at the core of the system.

5 / 10 kW

Rated output per inverter

Up to 9

Matching units in parallel

VS Pro Plus-series 5kW/10kW off-grid solar inverter with Transformer-based Support Parallel | Techfine
VS Pro Plus-series 5kW/10kW off-grid solar inverter with Transformer-based Support Parallel | Techfine
VS Pro Plus-series 5kW/10kW off-grid solar inverter with Transformer-based Support Parallel | Techfine

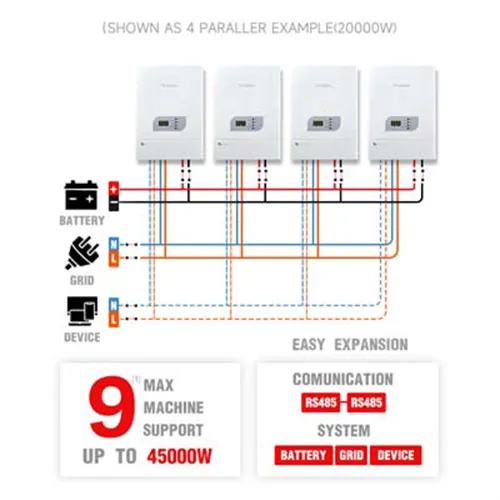

Matching VS Pro+ units · Shared 48 V battery system

SYSTEM OVERVIEW

Where the power goes

Use AC supply to power your loads and charge the battery. Add the optional solar controller to bring PV charging into the same system.

Inverter with optional solar charging: solar and AC sources feed the inverter, battery storage charges and discharges, and AC power supplies the loads. Inverter with optional solar charging: solar and AC sources feed the inverter, battery storage charges and discharges, and AC power supplies the loads. VS Pro Plus-series 5kW/10kW off-grid solar inverter with Transformer-based Support Parallel | Techfine

VS PRO+ SERIES

Store energy for later. Charge your battery when power is available, then draw on it during battery-powered operation.

Size the loads separately. Match real and apparent power to the inverter’s W and VA ratings. Solar charging uses the optional controller.

OPTIONAL SOLAR CHARGING

Add solar to your backup system

Choose the optional 120 A MPPT controller to charge from your PV array. Select the PV open-circuit voltage configuration to match your array design.

Available maximum PV open-circuit voltage configurations: 150 V DC or 245 V DC. Both use a 48 V battery system.

120 A

Maximum solar charging · optional MPPT

3.2 kW

PV array limit · 5 kW inverter

5.4 kW

PV array limit · 10 kW inverter

01

Return to service

Automatic restart when AC power recovers.

02

Use bypass when needed

Bypass mode and a selectable wide or UPS input range support different operating needs.

03

Manage idle demand

Power-saving mode is available alongside adjustable battery charging.

THE DETAILS, SIDE BY SIDE

Technical specifications

Compare 2 models by rated output, battery voltage and charging capacity.

Scroll sideways to compare all models.

VS Pro Plus-series specifications
SpecificationVS6348AM6BVS12548AM8B
Output
Rated output power5000 W10000 W
Apparent power6300 VA12500 VA
Nominal AC voltage230 V AC230 V AC
Output frequency50 / 60 Hz ±1%50 / 60 Hz ±1%
Output waveformPure sine wavePure sine wave
Transfer time≤10 ms (UPS); ≤20 ms (APL)≤10 ms (UPS); ≤20 ms (APL)
Maximum load peak ratio3:13:1
Parallel operationUp to 9 unitsUp to 9 units
Bypass modeSupportedSupported
Power-saving modeSupportedSupported
Battery & AC charging
Battery system voltage48 V48 V
Maximum AC charging current50 A100 A
Battery typesVRLA, gel, gel deep-cycle and lithiumVRLA, gel, gel deep-cycle and lithium
Charging current adjustmentSelectableSelectable
AC input
Nominal AC input voltage230 V AC230 V AC
AC input voltage range90–275 V AC ±3 V / 170–275 V AC ±3 V (selectable)90–275 V AC ±3 V / 170–275 V AC ±3 V (selectable)
Input frequency50 / 60 Hz ±5% (auto-sensing)50 / 60 Hz ±5% (auto-sensing)
Optional solar charging
Solar controllerMPPT controller (optional)MPPT controller (optional)
Maximum solar charging current120 A (MPPT option)120 A (MPPT option)
Maximum PV array power3200 W5400 W
Maximum PV open-circuit voltage150 V DC or 245 V DC, depending on configuration150 V DC or 245 V DC, depending on configuration
Maximum MPPT efficiency98% (MPPT option)98% (MPPT option)
Control & protection
TransformerBuilt inBuilt in
Battery communicationLithium battery BMS functionLithium battery BMS function
DisplayAC / PV / output / battery readings on LCDAC / PV / output / battery readings on LCD
AC recoveryAutomatic restartAutomatic restart
Input protectionOvercurrent fuseOvercurrent fuse
Output protectionOverload, short circuit, high / low voltage and battery reverse connectionOverload, short circuit, high / low voltage and battery reverse connection
AlarmsLow battery, overload and faultLow battery, overload and fault

BEFORE YOU CHOOSE

A few useful answers.

Do both power sizes use a 48 V battery?

Yes. Both the 5 kW VS6348AM6B and 10 kW VS12548AM8B use a 48 V battery system.

How far can I expand a parallel system?

VS Pro+ supports up to nine units in a matching parallel configuration. Select matching inverters and size the battery bank and distribution for the combined system.

Is the 120 A MPPT controller included?

It is optional. Specify the MPPT option when you want solar charging. Maximum PV array power is 3200 W on the 5 kW model and 5400 W on the 10 kW model.

What do the 150 V and 245 V solar figures mean?

They are the maximum PV array open-circuit voltage limits of the available configurations. They are separate from the 48 V battery voltage. Choose the correct PV voltage configuration for your array.

What happens when AC power returns?

Automatic restart supports recovery after AC power returns. Bypass and power-saving modes are also available, and the LCD shows AC, PV, output and battery information.
