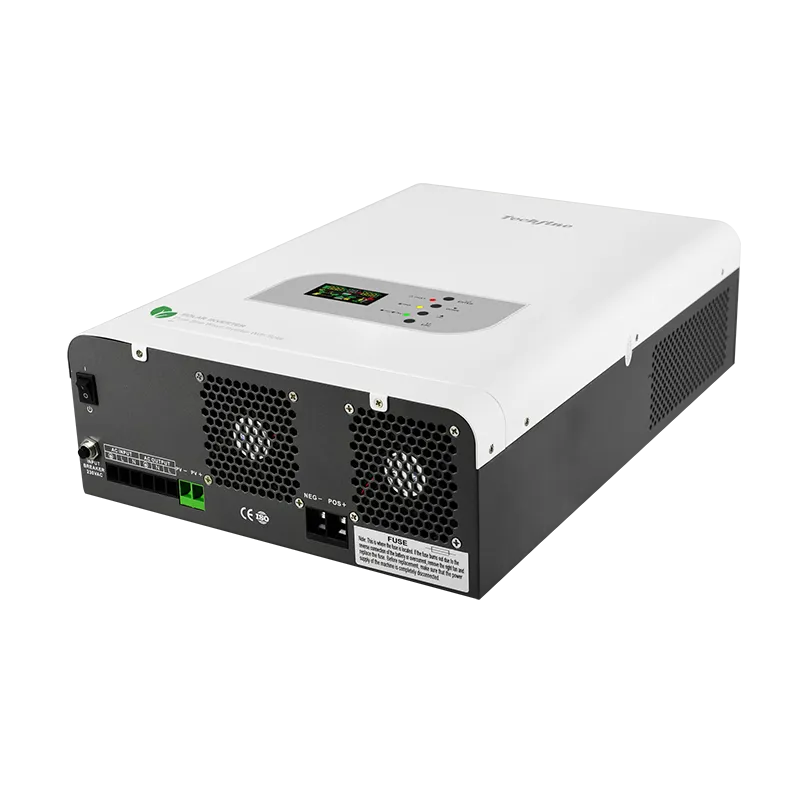

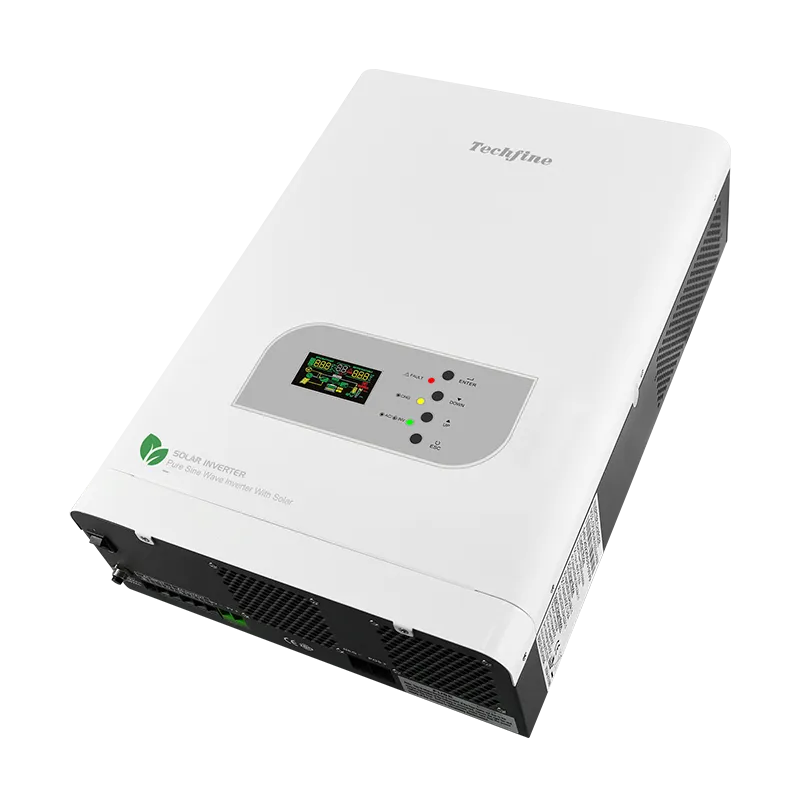

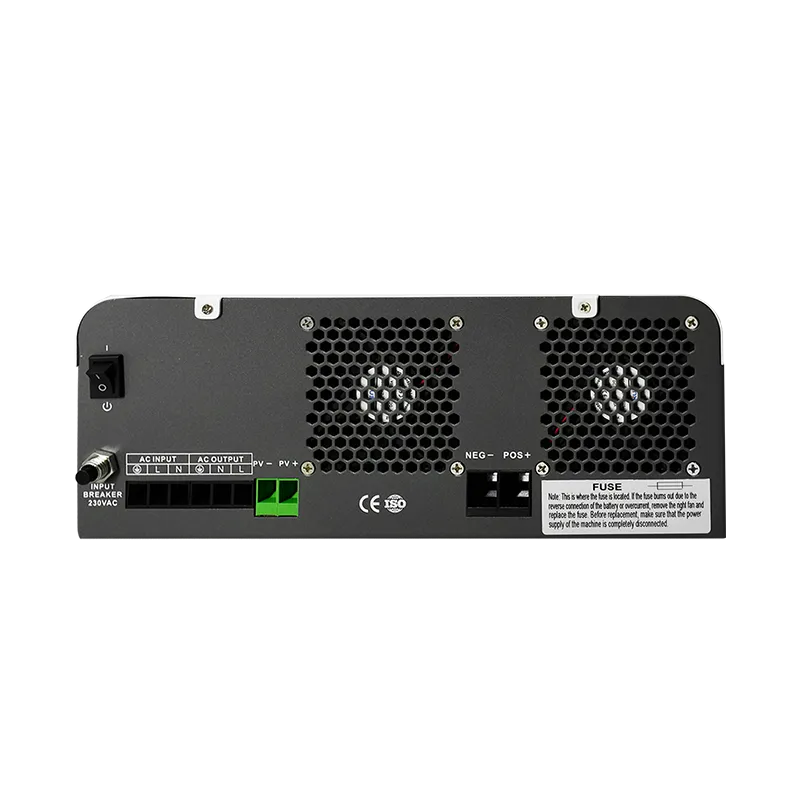

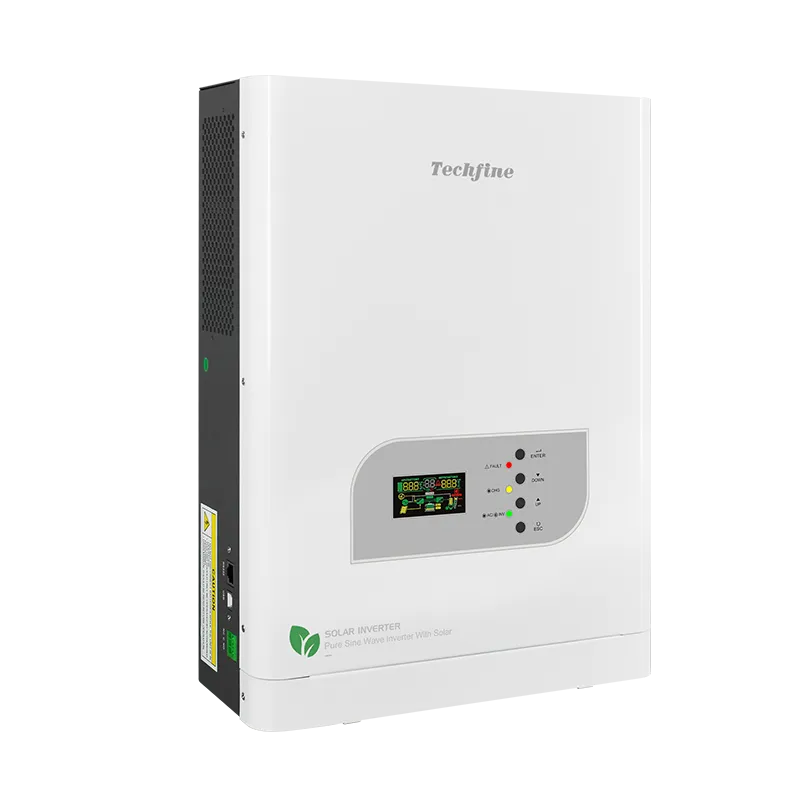

VS Pro-series | 1.2kW–10kW
Off-grid Solar Inverter
Transformer-based110V/120V Output Available
Main Feature
- Pure sine wave output
- Can support WIFI / GPRS
- MPPT Efficiency max 98%
- Optional built-in MPPT/PWM30-60A controller
- DC Start & Automatic Self-Diagnostic Function
- Automatically send signal to start generator
- High efficiency design for optimized battery performance
- Selectable charging current based on applications
- lead acid battery/Lithium battery
- BMS function for lithium battery
- AC start-up voltage auto restart voltage/110V/120V Output Available
Product Details
Connection Diagram
Automatic restart when AC power is restored Charging current.
Connection Diagram
Automatic restart when AC power is restored Charging current.
Connection Diagram
Automatic restart when AC power is restored Charging current.
Connection Diagram
Automatic restart when AC power is restored Charging current.
Connection Diagram
Automatic restart when AC power is restored Charging current.
Connection Diagram
Automatic restart when AC power is restored Charging current.
Technical specification
Downloaded Specifications| Model | VS1512AM | VS2024AM | VS3024/48AM6 | VS5024/48AM6 | VS6348AM8 | VS8048AM8 | VS10048AM8 | VS12548AM8 |
|---|---|---|---|---|---|---|---|---|
| AC Input | ||||||||
| AC Input voltage | 220VAC(standard) | |||||||
| Input voltage range | 154-264VAC±3V(Nor Mode)185-264VAC±3V(UPS mode) 175-285VAC±3V(AVR Type) |
|||||||
| Input frequency | 50/60Hz±5% | |||||||
| AC Mode Output | ||||||||
| Out put power | 1500VA 1200W | 2000VA 1600W | 3000VA 2400W | 5000VA 4000W | 6300VA 5000W | 8000VA 6400W | 10000VA 8000W | 12500VA 10000W |
| AC model output Voltage | The output voltage under the mains is the same as the input voltage(with AVR function 220V±10%) | |||||||
| Battery Mode Output | ||||||||
| Battery model output voltage | 220VAC±10% | |||||||
| Battery model output frequency | 50HZ or 60HZ±1% | |||||||
| Battery model output wave | Pure sine wave | |||||||
| load peak ratio | (MAX)3:1 | |||||||
| Battery | ||||||||
| Battery type | External lead-acid battery,Gel battery, water battery or Lithium battery | |||||||
| Battery voltage | 12VDC/24VDC/48VDC | 48VDC | ||||||
| Battery charging voltage | 13.7VDC/27.4VDC/54.8VDC | 54.8VDC | ||||||
| PV Input | ||||||||
| Maximum PV array power | 12V: 800W 24V:1600W 48V:3200W | 6400W | ||||||
| Solar input voltage range | 12V: MPPT 15V-50VDC 24V: MPPT 30V-150VDC 48V: MPPT 60V-150VDC | 48V: MPPT 60V-150VDC | ||||||
| Maximum PV Display Open Circuit Voltage | 50VDC | 150VDC | ||||||
| Maximum solar charging current | 60A | 120A | ||||||
| Maximum AC Charge Current | 40A | 33A | 50A/25A | 80A/40A | 50A | 65A | 80A | 100A |
| Transfer & Protection | ||||||||
| Transfer time | ≤10ms(UPS Mode) / ≤20ms(INV Mode) | |||||||
| Protective function | Under the mains: input over current fuse Under inverter: overload protection, short circuit protection, Iow voltage protection. (with battery anti-reverse connection board) |
|||||||
| Display & Notification | ||||||||
| Status Display | You can view parameters such as AC voltage, AC frequency, PV voltage, PV current, output voltage, output frequency, battery voltage, load current and other parameters by turning the page keys. | |||||||
| Voice prompt | Low battery protection buzzer long beep Low battery buzzer beeps every second Machine fault buzzer beeps Overload buzzer beeps When the overload is less than 130%, the buzzer will sound every second, and the output will be turned off after 30S. When the overload is greater than 150%,the output will be turned off after 300mS. |
|||||||
| Environmental | ||||||||
| Operating temperature | -10℃~50℃ | |||||||
| Storage temperature | -15℃~45℃ | |||||||
| Relative temperature | -10℃~90℃ no condensation | |||||||
| Noise | ＜45dB | |||||||
