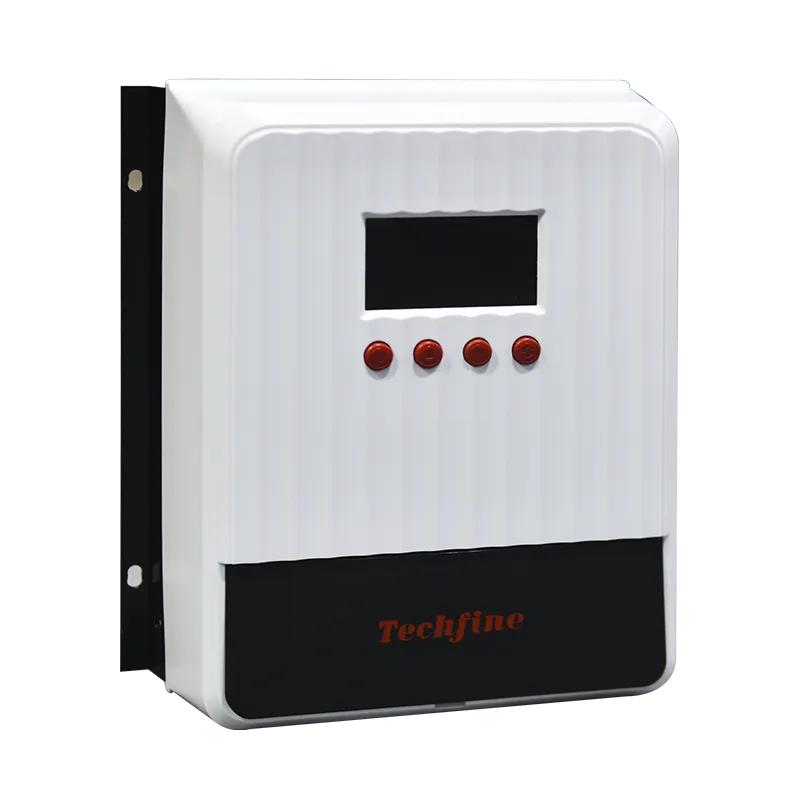

MG-series | 40A 60A
MPPT Solar Charge Controller
Main Feature
- Combining multiple tracking algorithms, it can accurately track the optimal working point of the l-V curve in a very short time.
- Using advanced digital power technology, the circuit energy conversion efficiency is as high as 98%.
- Supports historical data storage, and can check the power generation at any time.
- Built-in over-temperature protection mechanism, intelligently identify the optimal charging power under the current ambient temperature, and avoid high temperature damage to the controller.
- Supports charging configurations of different types of batteries such as colloid batteries, sealed batteries
open batteries, and lithium batteries.
Product Details
Professional Controller Features
Offers peak power tracking, automatic voltage recognition, multiple tracking algorithms, LCD display, and built-in over-temperature protection.
Professional Controller Features
Offers peak power tracking, automatic voltage recognition, multiple tracking algorithms, LCD display, and built-in over-temperature protection.
Professional Controller Features
Offers peak power tracking, automatic voltage recognition, multiple tracking algorithms, LCD display, and built-in over-temperature protection.
Professional Controller Features
Offers peak power tracking, automatic voltage recognition, multiple tracking algorithms, LCD display, and built-in over-temperature protection.
Professional Controller Features
Offers peak power tracking, automatic voltage recognition, multiple tracking algorithms, LCD display, and built-in over-temperature protection.
Professional Controller Features
Offers peak power tracking, automatic voltage recognition, multiple tracking algorithms, LCD display, and built-in over-temperature protection.
Technical specification

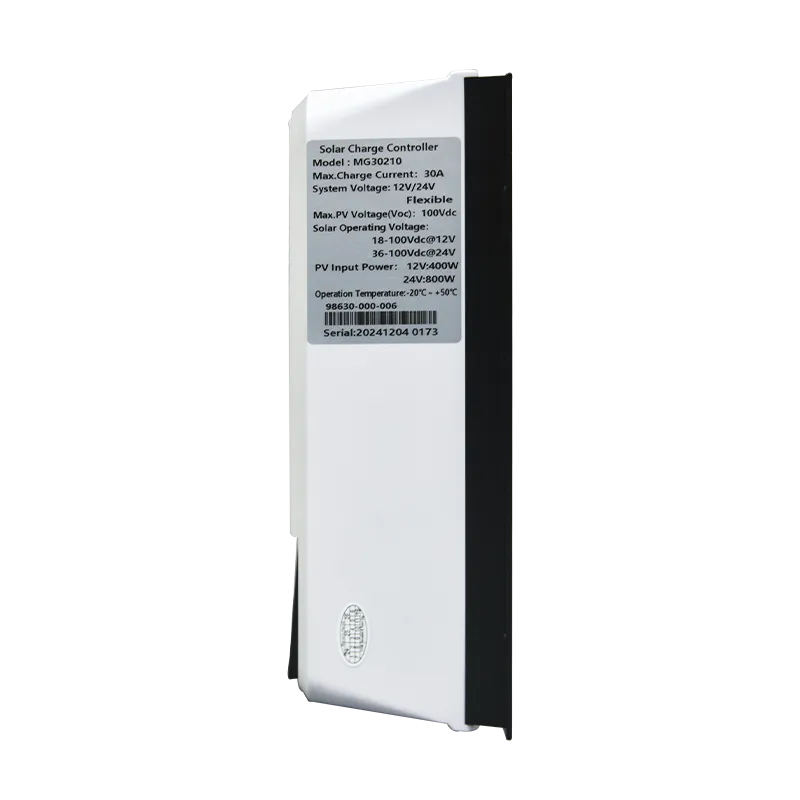

Downloaded Specifications| Model | MG40415 | MG60415 |
|---|---|---|
| System Voltage | 12/24VDC（Adaptive） | 12/24/36/48VDC（Adaptive） |
| Operating Voltage Range Of Controller | 9~32V | 10~64V |
| Lead Acid Batteries Type | Maintenance-free（default）lead Acid Battery, Gel Battery, Open Lead Acid Battery, Custom | |
| Lithium Battery Type | Lithium Iron Phosphate/lithium Ternary/custom | |
| Nominal Current | 40A | 60A |
| Solar panel rated input power | ||
| Solar panel rated input power | 400W/12V | 800W/12V |
| 800W/24V | 1200W/24V | |
| / | 2400W/36V | |
| / | 3200W/48V | |
| Pv Input Maximum Open Circuit Voltage (voc) | 100VDC | 150VDC |
| Maximum power point operating voltage range | ||
| 12V | 18～100VDC | 18～150VDC |
| 24V | 36～100VDC | 36～150VDC |
| 36V | / | 50～150VDC |
| 48V | / | 64～150VDC |
| Tracking Efficiency | ≥99.9% | ≥99.9% |
| Maximum conversion efficiency | 85%~98% | |
| Temperature compensation coefficient | -3mv/~/2V | |
| Static Loss | 200mA/12V;100mA/24V;50mA/48V; | |
| DC Load Output Voltage | Same as Battery Voltage | |
| Rated Output Current Of DC Load | 20A | |
| DC Load Output Control Mode | Normally open or normally closed mode | |
| Protections | PV input anti reverse connection protection, Battery input reverse connection protection, Battery overcharge protection, Battery undervoltage protection, Battery over temperature protection and Machine over temperature protection |
|
| IP Level | IP32 | |
| Heat Dissipation Mode | Air cooling | |

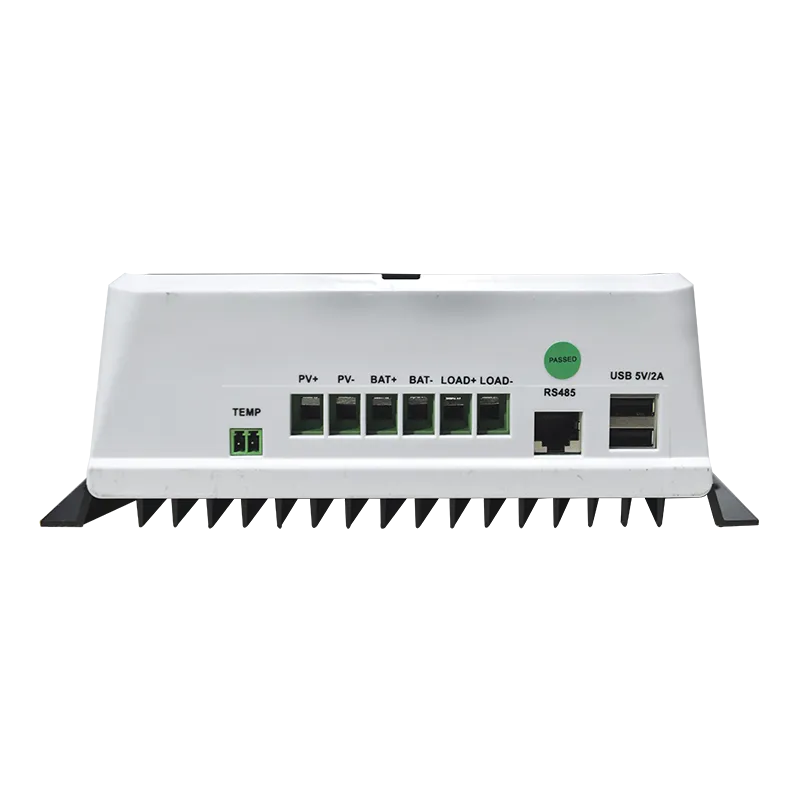

| Communication | RS485/RS232 | |
| Lcd Backlight Time | The default is 60s，and the back light mode can be set | |
| Working Temperature | -20°C~+50°C | |
| Storage Temperature | -30°C～+70°C | |
| Recommended Cable | 11AWG/4mm² | 7AWG/10mm² |
| N.W | 1.4kg | 1.45kg |
