An inverter display answers three questions: where is the power coming from, where is it going, and is anything wrong. Learn to read those three layers (LED lights, live numbers, and fault codes) and you can diagnose most issues in under a minute, often without opening a manual.
This guide walks through each layer on a typical hybrid inverter display, decodes the 16 standard fault codes, and covers what to do when the display itself goes blank or freezes.
Key Takeaways
- Read the display in order: LEDs for a 10-second status check, live readouts for behavior, fault codes for exact problems.
- Fault codes 01-09 mostly point to conditions you can check yourself (fan, temperature, battery voltage, overload); most 5x codes indicate internal faults for service.
- A load reading that sits at 75-100% is a warning in itself: sustained near-limit load ends in overload shutdowns.
- Blank screen usually means a power problem, not a display problem. Check supply before assuming failure.

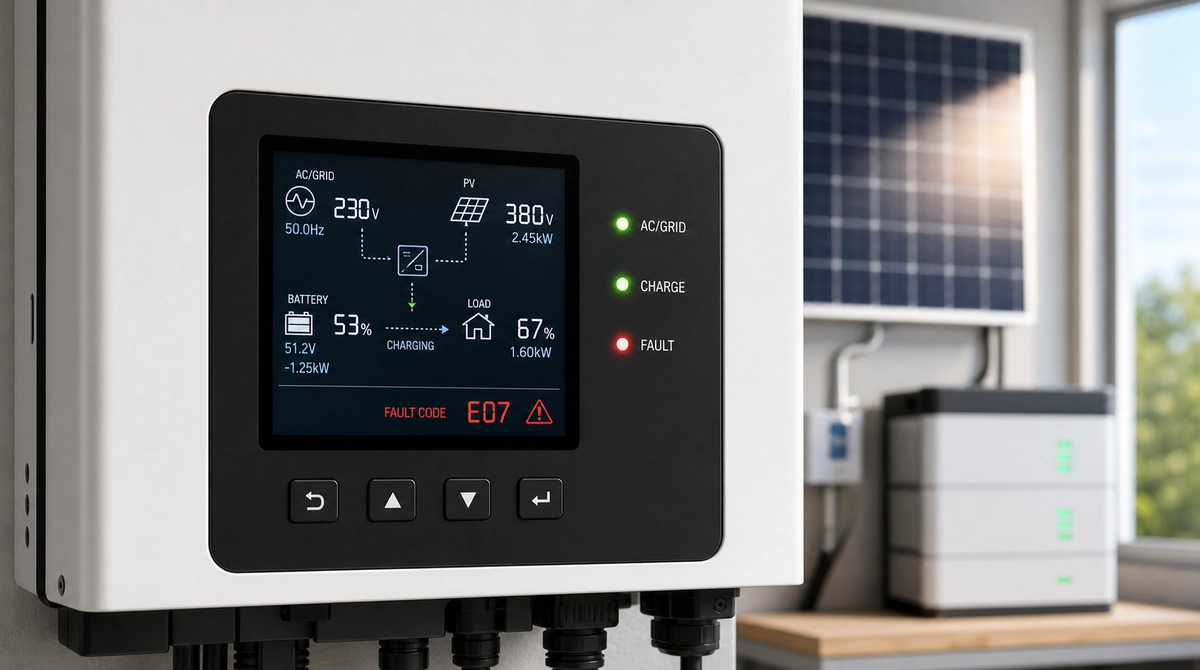

LED Lights: The 10-Second Health Check
Three LEDs summarize the whole system: AC/Grid (green), Charge (green), and Fault (red). Green steady or rhythmic flashing is normal; red in any form needs attention.
- AC/Grid (green). Solid: running on grid power (normal at night or in bypass). Flashing: running on solar or battery. If it flashes for a day straight in a grid-connected home, check whether grid input has failed.
- Charge (green). Flashing: battery charging, normal. Solid: battery full and holding (float). No action needed; the charge controller manages the battery.
- Fault (red). Flashing: a warning such as high temperature; investigate the same day. Solid: the inverter has shut down on a protection event; note the fault code before touching anything, then deal with the cause before restarting.
The Digital Readouts That Matter
Four numbers deserve a regular glance: grid input voltage, PV input voltage, load percentage, and battery level. Each one flags a different class of problem before it becomes a fault code.
| Readout | Normal behavior | What a bad reading means |
|---|---|---|
| Grid voltage | Within your market’s range (e.g. 220-240V) | Sustained high/low readings explain frequent switches to battery; unstable grid |
| PV voltage | Steady during daylight, tracks weather | Sudden drops with clear sky: shading, loose MC4 connector, or string fault |
| Load % | Comfortably below 75% | Sitting at 75-100% invites overload shutdown; move or stagger loads |
| Battery level | Cycles within expected depth | Never reaching full: undersized array or aging bank; drops fast: overload or failing cells |
Status icons vary by model, but two are worth knowing everywhere: the source-priority icon (shows whether solar or grid is set as the preferred source) and the mute icon (alarms silenced; check the screen deliberately since it won’t beep at you).
Solar Inverter Error Codes Explained
Fault codes are the display naming the exact protection that tripped. The table below covers the 16 codes used across typical hybrid and off-grid models; always confirm against your unit’s manual, since code maps differ between brands and series.
| Code | Meaning | First action |
|---|---|---|
| 01 | Fan locked when inverter is off | Check the fan for dust or obstruction; replace if it won’t spin |
| 02 | Over temperature or NTC sensor error | Improve ventilation, reduce load, check ambient temperature |
| 03 | Battery voltage too high | Verify battery bank voltage matches inverter setting; check charger parameters |
| 04 | Battery voltage too low | Recharge; check for over-discharge or a loose battery cable |
| 05 | Output short circuit or internal over-temperature | Disconnect all loads, find the short before restarting |
| 06 | Output voltage too high | Restart once; if it repeats, service is needed |
| 07 | Overload timeout | Reduce load; check for surge-heavy appliances (pumps, compressors) |
| 08 | Bus voltage too high | Internal DC bus event; restart once, then service if it repeats |
| 09 | Bus soft start failure | Internal fault; contact service |
| 51 | Overcurrent or surge detected | Remove the load that triggered it; check wiring for shorts |
| 52 | Bus voltage too low | Restart once; recurring code needs service |
| 53 | Inverter soft start failure | Internal fault; contact service |
| 55 | DC voltage detected in AC output | Internal fault; stop using and contact service |
| 57 | Current sensor failure | Internal fault; contact service |
| 58 | Output voltage too low | Check for overload; if it persists, service |
| 59 | PV voltage exceeds limit | Too many panels in series; shorten the string to fit the input range |
A useful pattern: codes 01-07 and 59 usually point outward (fan, heat, battery, load, PV string), things you or your installer can check. Most bus and sensor codes (08, 09, 5x) point inward to the power stage, which is warranty territory, not screwdriver territory.
If a code keeps returning after the cause is fixed, work through our full solar inverter problems and solutions guide before requesting service.
Display Not Working? Blank and Frozen Screens
A blank display is usually a power problem; a frozen display is usually a firmware or communication problem. The tests differ.
For a blank screen:
- Confirm the inverter has any live source: battery breaker on, or PV/grid present. No source, no display.
- Check whether LEDs still light. LEDs on with a dark screen points to the display module or its ribbon/CAN connection rather than the whole unit.
- Look for backlight-only behavior at night: some models sleep the screen; a button press should wake it.
For a frozen screen (numbers stop updating, buttons dead):
- Power-cycle the unit following the manual’s shutdown order: loads off, PV breaker off, battery breaker off, wait a minute, restart in reverse order.
- If freezes recur, note the firmware version and ask your supplier about an update; recurring interface freezes are almost always firmware, not hardware.
If you have remote monitoring configured, the app often keeps reporting even when the local screen misbehaves, which tells you the inverter itself is alive; see how to connect your inverter to Wi-Fi. Routine screen and vent cleaning belongs in the maintenance checklist.
A Note on Techfine Displays
Techfine hybrid and off-grid inverters use this three-layer display logic, and the fault-code map above matches our common models; the manual packed with each unit is the authoritative reference for your exact series. As a manufacturer with 25 years in power electronics and exports to 190+ countries, we design displays for exactly the situation this article describes: a distributor’s technician or an installer diagnosing a unit by phone, in the field, with no laptop.
For distributors: we can supply fault-code reference cards and localized display manuals as part of OEM/ODM packages, which measurably cuts first-line support time. Manuals are available on the download page.
FAQ: Solar Inverter Displays
What does a flashing green light mean on a solar inverter?
On the AC/Grid LED, flashing means the inverter is running from solar or battery instead of the grid. On the Charge LED, flashing means the battery is charging. Both are normal states; the pattern only matters if it contradicts what you expect (for example, flashing AC/Grid all day in a grid-tied home).
Why is my solar inverter display blank at night?
Off-grid and hybrid units power the display from the battery or grid, so a blank screen at night with the battery breaker off is expected on some setups. Some models also sleep the backlight; press any button. If the screen stays dark with a charged battery connected, check the battery breaker and cable before suspecting the display.
What does error code 04 mean and how do I fix it?
Code 04 is battery voltage too low. The inverter has cut output to protect the battery from deep discharge. Recharge from grid or solar, then look for the cause: too much overnight load, an undersized battery bank, or a battery that no longer holds capacity. If the bank is lithium, the BMS readout will show whether one pack is dragging the bank down.
Do fault codes clear themselves?
Warning-level events usually clear once the condition passes (temperature drops, load removed). Protection shutdowns generally require a restart after you’ve fixed the cause. A code that returns immediately after restart means the cause is still present, not that the inverter needs resetting again.
Final Thoughts
Read the LEDs first, the numbers second, the fault code last, and you’ll know whether a problem needs a rag (dusty fan), a rewire (overload), or a warranty claim (bus faults) before anyone climbs a ladder. Keep the fault-code table saved on your phone; it answers most support calls.
