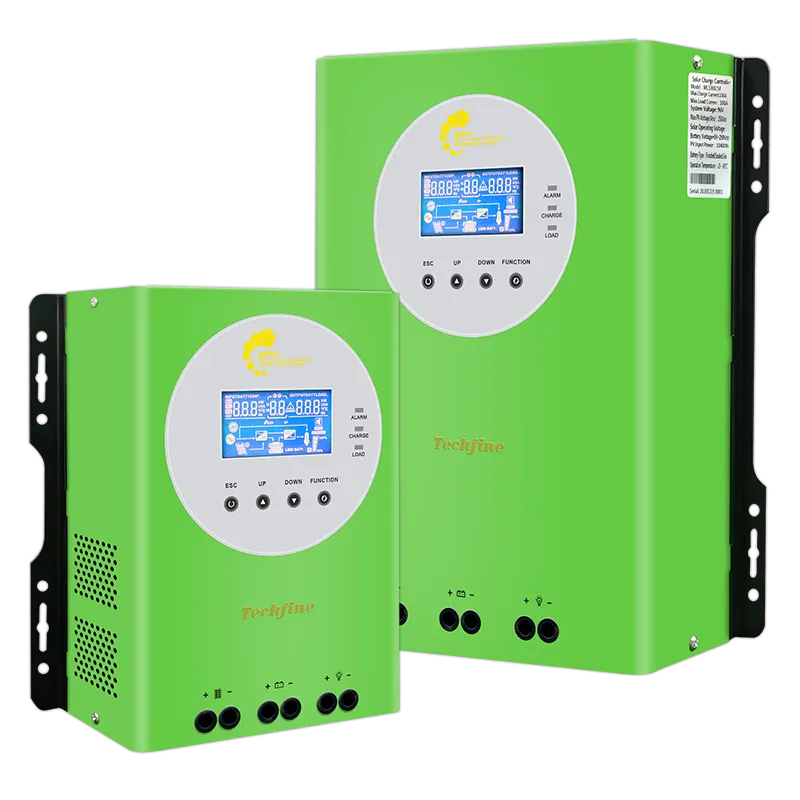

ML-series | 40A–100A
MPPT Solar Charge Controller
Self-adaptiveSupport WIFI/GPRS
Main Feature
- support WIFI/GPRS
- 12/24/36/48V self-adaptive
- Three-stage smart charging
- self-starting function of lithium batteries
- Adjustable parameters by pressing buttons
- Also accept connect Lead acid battery lithium battery
Product Details

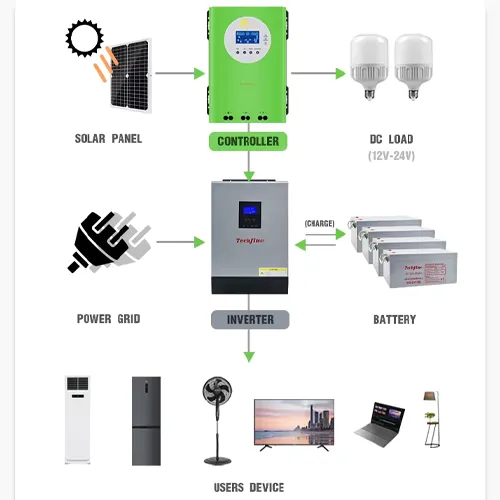

Connection Diagram
Charging current can be adjusted, adjust the charging current, ect.
Connection Diagram
Charging current can be adjusted, adjust the charging current, ect.
Connection Diagram
Charging current can be adjusted, adjust the charging current, ect.
Connection Diagram
Charging current can be adjusted, adjust the charging current, ect.
Connection Diagram
Charging current can be adjusted, adjust the charging current, ect.
Connection Diagram
Charging current can be adjusted, adjust the charging current, ect.
Technical specification
Downloaded Specifications| Model | ML40415 | ML60415 | ML80415 | ML100415 | ML40425 | ML60425 | ML80425 | ML100425 |
|---|---|---|---|---|---|---|---|---|
| System Voltage | 12/24/36/48VDC(Adaptive) | 96VDC | ||||||
| Rated current | 40A | 60A | 80A | 100A | 40A | 60A | 80A | 100A |
| Charging mode | MPPT maximum power point tracking | |||||||
| Applicable battery type | Sealed Lead Acid Battery, Gel Lead Acid Battery, Open Lead Acid Battery (can Also Customize Parameters For Other Types Of Battery Charging) | |||||||
| Charging method | Three Stages: Constant Cairent Rent Foltage, Floating Charge | |||||||
| PV input maximum open circuit voltage (VOC) | DC150V | DC250V | ||||||
| Starting time | ≤10s | |||||||
| Dynamic response recovery time | ≤500us | |||||||
| Static power | ≤4W | ≤8W | ≤4W | ≤8W | ||||
| MPPT Trackingefficiency | ≥99.5% | |||||||
| Max efficiency | ≥98% | |||||||
| System identified voltage range | 10~64V | 10~64V | ||||||
| Maximum power point operating voltage range | ||||||||
| 12V | 18~150V | 18~250V | ||||||
| 24V | 36~150V | 36~250V | ||||||
| 36V | 48~150V | 48~250V | ||||||
| 48V | 64~150V | 64~250V | ||||||
| Rated charging power | ||||||||
| 12V | 540W | 800W | 1040W | 1300W | 540W | 800W | 1040W | 1300W |
| 24V | 540W | 1080W | 2080W | 2600W | 540W | 1080W | 2080W | 2600W |
| 36V | 1620W | 2400W | 3120W | 3900W | 1620W | 2400W | 3120W | 3900W |
| 48V | 2160W | 3200W | 4160W | 5200W | 2160W | 3200W | 4160W | 5200W |
| 96V | / | 4160W | 6240W | 8320W | 10400W | |||
| Load voltage | Same as Battery Voltage | |||||||
| Rated load current | 40A | |||||||
| Load control method | Normally ON/OFF mode/time control mode/light control mode | |||||||
| Load undervoltage protection | 10.5V*N (N stands for batteries number) Parameters can be adjustable | |||||||

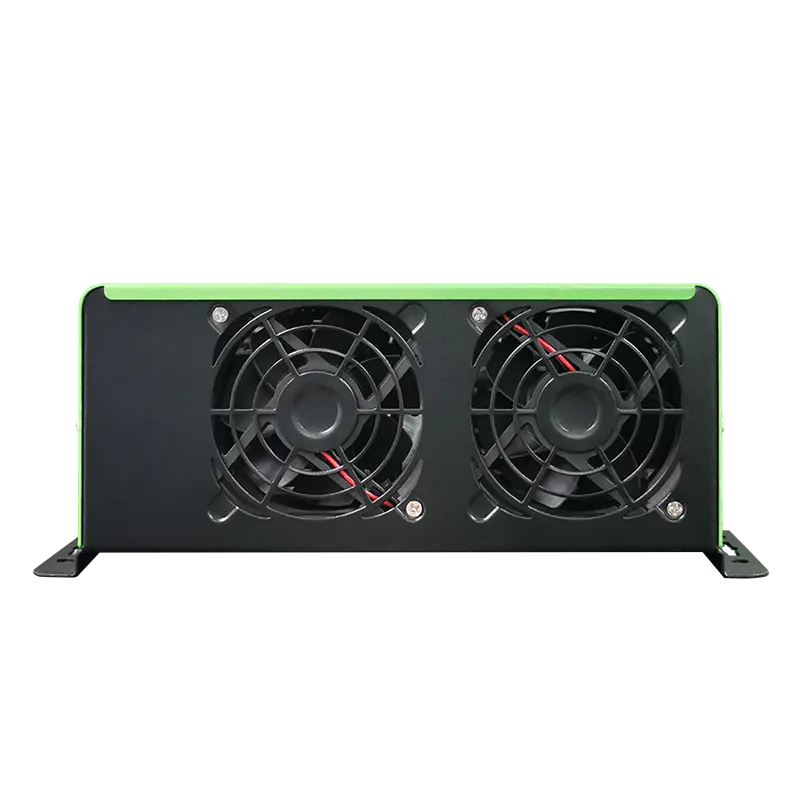

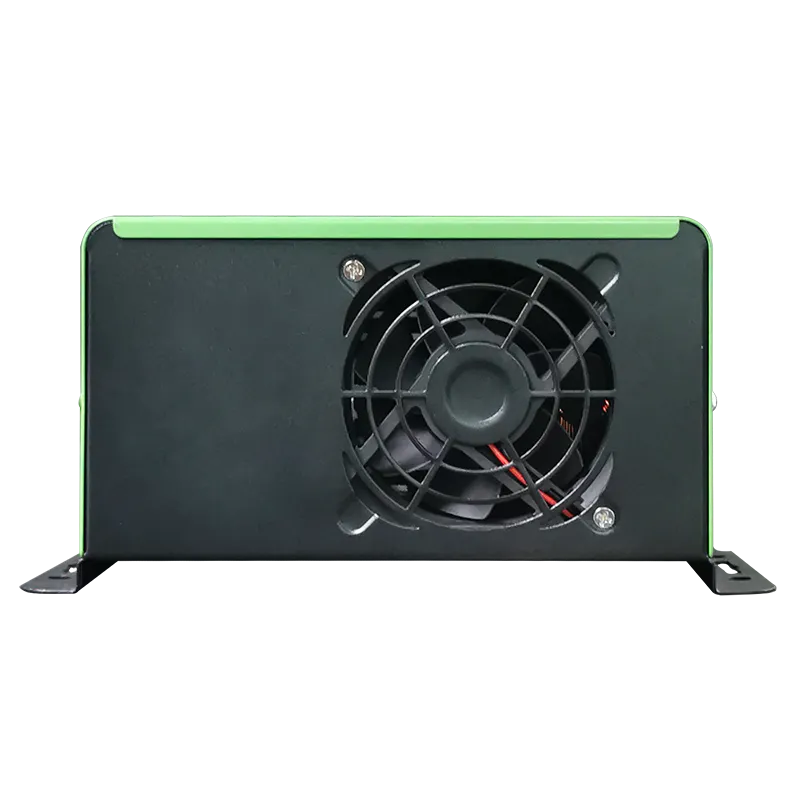

| Cooling | Air Cooling | |||||||

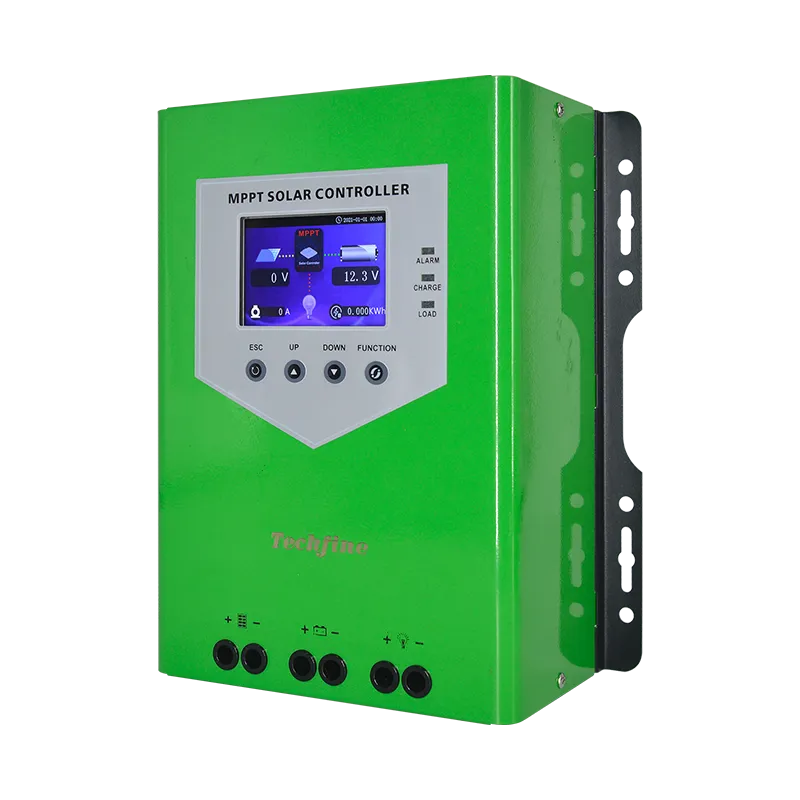

| Display | HD LCD backlight display | |||||||
| Protections | Input and output over&low-voltage protection, input and output anti-reverse protection, over-temperature protection, load over-current protection | |||||||
| Temperature compensation coefficient | -3mV/℃~~/2V | |||||||
| Working temperature | -20℃~+50°C | |||||||
| Storage temperature | -40℃~+70°C | |||||||
| Noise (dB) | ≤50dB | |||||||
| Humidity | 0~90%RH | |||||||
| Working altitude | 0~3000M | |||||||
| Dimension, L*W*H | 219*260*110 | 275*348*109 | 219*260*110 | 275*348*109 | ||||
| Net Weight (KG) | 2.8KG | 4.6KG | 5.2KG | 2.8KG | 4.6KG | 5.2KG | ||
| specification Suggested wire specification | 7AWG/10mm² | 6AWG/16mm² | 4AWG/25mm² | 2AWG/35mm² | 7AWG/10mm² | 6AWG/16mm² | 4AWG/25mm² | 2AWG/35mm² |
