MPPT VS PWM Solar Charge Controller

Contents catalog

In the world of solar energy systems, solar charge controllers play a crucial role in optimizing power output and ensuring the efficiency and longevity of battery storage. Among the various types available, MPPT (Maximum Power Point Tracking) and PWM (Pulse Width Modulation) solar charge controllers stand out as popular choices. In this blog post, we’ll delve into the fundamental aspects of solar charge controllers, explore the differences between MPPT and PWM controllers, and help you make an informed decision for your solar system.

What is a Solar Charge Controller?

Before diving into the specifics of MPPT and PWM controllers, let’s first understand what a solar charge controller is and why it’s essential in a solar energy system. A solar charge controller is an electronic device that regulates the flow of electrical energy from solar panels to batteries. Its primary function is to prevent overcharging and deep discharging of batteries, thus protecting them from damage and extending their lifespan. Additionally, solar charge controllers ensure efficient charging by matching the voltage and current output of the solar panels to the requirements of the batteries.

What Does a Solar Charge Controller Do?

The core function of a solar charge controller is to manage the charging process of batteries in a solar energy system. It accomplishes this by monitoring the voltage and current from the solar panels and adjusting the charging parameters accordingly. During periods of ample sunlight, the controller regulates the charging current to prevent overcharging, while during low light conditions or at night, it ensures that the batteries receive sufficient charging current to maintain their capacity.

Solar Charge Controller Types

Solar charge controllers are broadly categorized into two main types: MPPT solar charge controller and PWM solar charge controller.

What is mppt solar charge controller

MPPT, or Maximum Power Point Tracking, solar charge controllers are advanced controllers designed to maximize the power output from solar panels. They achieve this by continuously adjusting the operating point of the solar panels to track the maximum power point (MPP) of the solar array. MPPT controllers utilize sophisticated algorithms to optimize the power conversion process, resulting in higher charging efficiency and increased energy harvest, especially in situations with varying sunlight intensity.

What is PWM Solar Charge Controller?

PWM, or Pulse Width Modulation, solar charge controllers are traditional controllers that regulate charging by rapidly switching the solar panel’s output between the battery and the charge controller. PWM controllers maintain a constant voltage output and adjust the charging current by varying the duty cycle of the switching signal. While PWM controllers are simpler and more cost-effective than MPPT controllers, they are less efficient, particularly in situations with non-ideal operating conditions or mismatched solar panel and

MPPT vs PWM Solar Charge Controller

Now, let’s compare MPPT and PWM solar charge controllers based on several key factors:

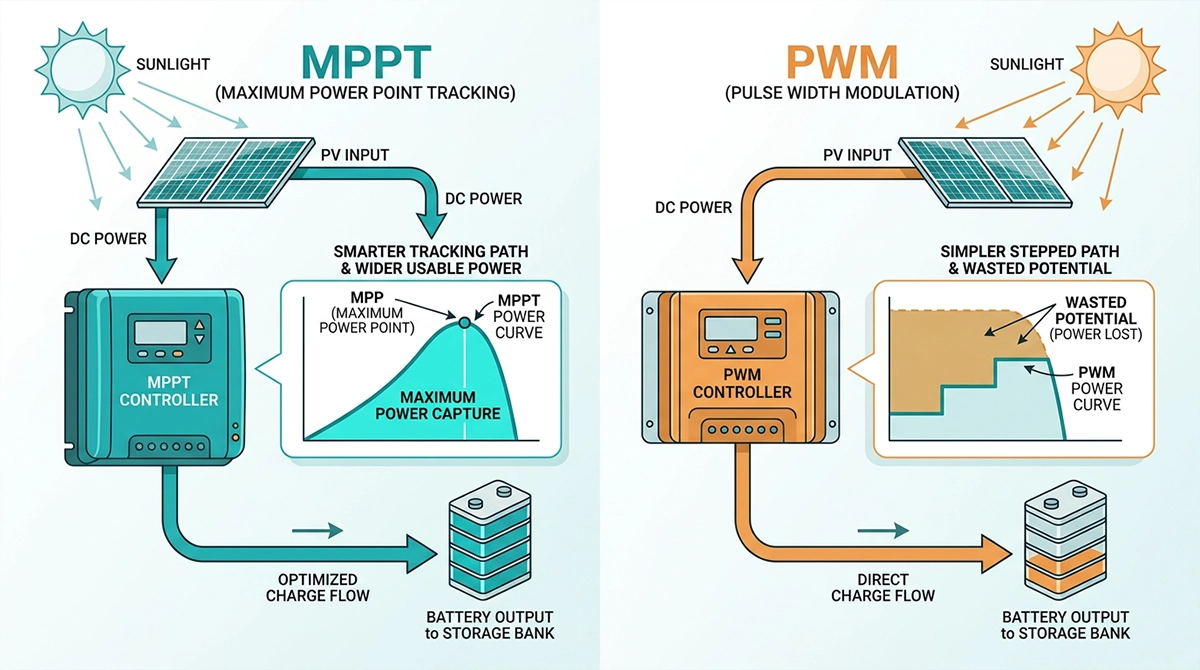

mppt vs pwm solar charge controller
  • Efficiency: MPPT controllers are generally more efficient than PWM controllers, especially in scenarios with fluctuating sunlight or mismatched panel and battery voltages. MPPT controllers can increase energy harvest by up to 30% compared to PWM controllers.
  • Flexibility: MPPT controllers offer greater flexibility in system design, as they can accommodate higher voltage solar panels and support larger solar arrays. PWM controllers are limited in their compatibility with different panel and battery configurations.
  • Cost: MPPT controllers tend to be more expensive than PWM controllers due to their advanced technology and higher efficiency. However, the increased energy harvest and improved battery lifespan offered by MPPT controllers can result in long-term cost savings.
  • Temperature Compensation: MPPT controllers often incorporate temperature compensation features, allowing them to adjust charging parameters based on ambient temperature conditions. This helps optimize charging performance and battery longevity, especially in extreme temperature environments.

In summary, while both MPPT and PWM solar charge controllers serve the essential function of regulating battery charging in solar energy systems, they differ significantly in terms of efficiency, flexibility, cost, and additional features. For applications where maximizing energy harvest and optimizing system performance are paramount, MPPT controllers are the preferred choice. However, for simpler installations with fixed configurations and budget constraints, PWM controllers remain a viable option.

How to select solar charge controller

Selecting the right solar charge controller involves considering factors like system voltage, panel and battery compatibility, controller type (MPPT or PWM), and desired features such as temperature compensation and load control. Begin by determining your system’s voltage requirements and ensuring that the controller can handle the maximum current from your solar panels. Evaluate the compatibility between your solar panels and batteries, ensuring that the controller’s charging profile matches your battery type (e.g., lead-acid, lithium-ion). Decide whether an MPPT or PWM controller best suits your system’s needs, considering factors like efficiency, cost, and environmental conditions. Additionally, look for features like temperature compensation to optimize charging performance, and load control capabilities to manage additional loads.

Conclusion

Choosing the right solar charge controller is critical for ensuring the efficiency and reliability of your solar energy system. By understanding the differences between MPPT and PWM controllers and evaluating your system requirements and budget constraints, you can make an informed decision that maximizes energy harvest and extends battery life. Whether you opt for the advanced capabilities of an MPPT controller or the simplicity of a PWM controller, investing in a high-quality solar charge controller is essential for the success of your solar energy project.
