Choosing a solar charge controller is not only about picking MPPT or PWM. It is about matching the controller to the PV array voltage, battery chemistry, charge current requirements, environmental conditions, and the buyer’s service and documentation needs.

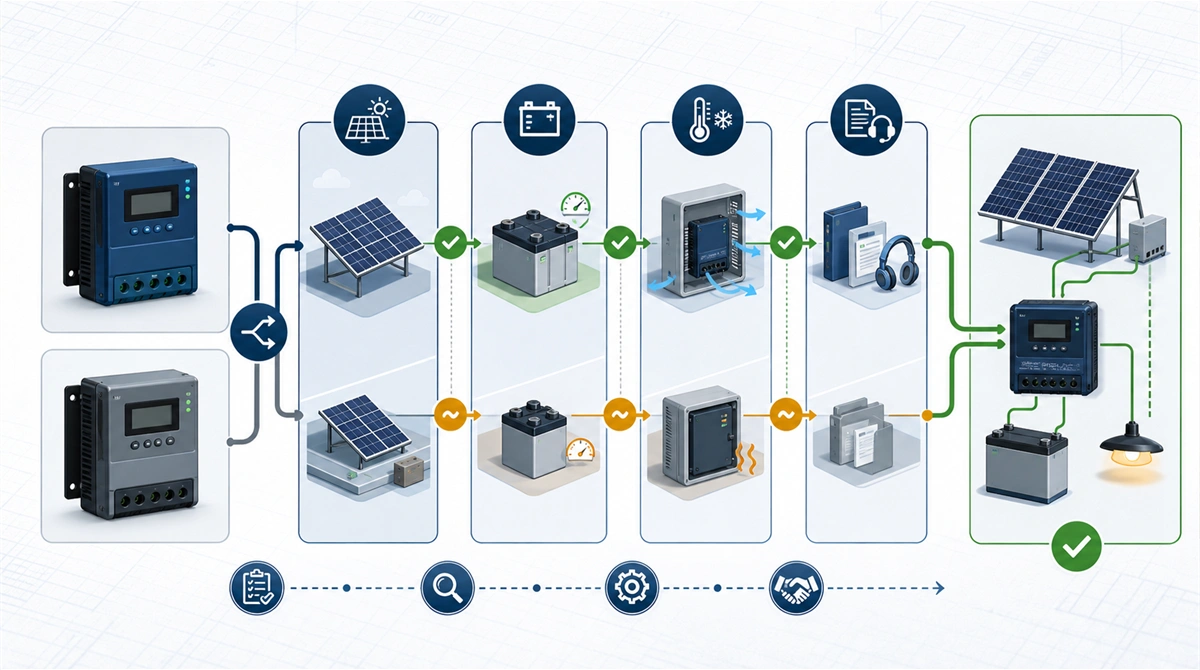

For importers and distributors, the selection determines whether a system charges reliably, protects the battery, and reduces after-sales complaints. This guide walks through the buyer’s decision in order.
Key Takeaways
- Match controller type (MPPT or PWM) to the PV array voltage relative to the battery voltage.
- Size the controller’s charge current rating at least 25% above the array’s maximum current, and check the PV input voltage limit with a cold-weather margin.
- Confirm battery chemistry compatibility, charge profile support, temperature compensation, and communication needs before sourcing.
- The hardware decision is one part; form-factor, warranty, documentation, and supplier experience are the rest.
When Should a Buyer Choose MPPT or PWM?
The decision between MPPT and PWM starts with the voltage relationship between the PV array and the battery bank. PWM controllers work well when array and battery voltage are closely matched. MPPT controllers convert excess voltage into additional charging current.
PWM can be a reasonable choice for small, cost-sensitive systems where a single panel voltage matches the battery voltage. MPPT is often the better choice when array voltage exceeds battery voltage, when maximizing energy harvest matters, or when a single controller must handle a higher-voltage array.
For a full technical comparison, see MPPT vs PWM solar charge controllers.
How Should a Buyer Size the Controller?
The controller’s charge current rating should be at least 25% above the array’s maximum short-circuit current, and the PV input voltage must stay safely below the controller’s maximum rating — with a cold-weather margin.
A 300W panel at 12V nominal produces roughly 25A, so a controller rated 30A or higher is a common starting point. The exact figure depends on the panel datasheet, string configuration, and local temperature extremes.
For the PV input voltage, use the array’s open-circuit voltage (Voc) adjusted for the lowest expected temperature at the installation site. Voc rises as temperature drops; a string that is within limits at 25°C can exceed them in cold weather. For a full sizing walkthrough, see how to size an MPPT solar charge controller.
What Battery Factors Must the Controller Support?
The controller must support the battery chemistry, nominal system voltage, charge profile, and any BMS communication required by the battery. A controller that charges flooded lead-acid correctly may need different settings — or may not be suitable at all — for AGM, GEL, or lithium batteries.
Before selecting a controller, confirm:
- Nominal system voltage: 12V, 24V, 48V, or auto-detection
- Battery chemistry: flooded, AGM, GEL, LiFePO4, or a user-defined profile
- Absorption and float voltage ranges supported by the controller
- Temperature compensation support and whether a remote sensor is included
- Current-limit and equalization behavior
- Communication: does the battery require CAN, RS485, or a proprietary BMS interface?
For a deeper look at battery types and charge requirements, see what a lead-acid battery is and our AGM vs GEL battery comparison.
What Else Should a Buyer Evaluate?
The controller hardware is not the full decision. Documentation, support, and field behavior matter just as much for importers and distributors.
| Buyer check | Why it matters |
|---|---|
| PV input voltage range and cold-weather margin | Prevents controller damage and shutdown |
| Charge current rating and derating curve | Avoids undersizing and thermal throttling |
| Battery chemistry presets and user-defined options | Correct charging for the installed battery |
| Communication and monitoring | Remote support, BMS integration, and fault diagnosis |
| Enclosure rating and environmental limits | Dust, moisture, and temperature suitability |
| Wiring, terminal type, and installation manual | Speeds up first installation and reduces installer errors |
| Warranty and local after-sales service | Protects distributor margin and customer relationships |
| Supplier technical documentation | Lets the distributor train installers and support customers |
A controller that looks correctly rated on a catalog page still needs a datasheet, a fault-code guide, a wiring manual, and a supplier who can answer technical questions. For a broader view of supply options, see solar charge controller manufacturers. Also plan the maintenance routine — our solar charge controller maintenance guide covers the field checklist.
What Mistakes Do Buyers Commonly Make?
The most expensive mistakes are choosing by price or rated current alone. A controller that appears cheaper can cost more in returns if it is undersized, incompatible with the battery, or lacks documentation.
- Selecting a controller without checking the PV input voltage limit against the actual array Voc at cold temperature
- Under-rating the charge current and operating the controller near its thermal limit
- Using a lead-acid charge profile for a lithium battery, or vice versa
- Ordering a controller without first confirming battery communication requirements
- Skipping the warranty document and local service process before placing a bulk order
Conclusion
Choosing a solar charge controller means matching the controller type, voltage and current ratings, battery chemistry support, and documentation to the real system, site conditions, and buyer’s service plan. For an importer, the full package — hardware, manual, warranty, and supplier support — determines whether the controller performs in the field.
Techfine provides MPPT solar charge controllers for B2B customers and can support OEM/ODM partners with product specifications, technical documentation, and selection guidance. Share the PV array details, battery chemistry, system voltage, and target market environment to discuss suitable controller options.
Sources
- U.S. Department of Energy, Solar Integration: Inverters and Grid Services Basics, accessed July 2026.
- Exact PV input limits, charge settings, battery compatibility, and environmental specifications must follow the specific controller and battery manufacturer datasheets.
FAQ: Choosing a Solar Charge Controller
Is MPPT always better than PWM?
MPPT is often the better technical choice when array voltage exceeds battery voltage or when maximizing energy harvest matters, but PWM can be a suitable and cost-effective option for small, well-matched systems where the panel and battery voltages are close. Compare the exact system requirements before deciding.
How much safety margin should a charge controller rating have?
A 25% margin above the array’s maximum short-circuit current is a common starting point. Additional margin may be needed for high-temperature environments where the controller may thermally derate, or for future system expansion.
Can one charge controller work with any battery chemistry?
No. A controller must support the battery chemistry, nominal voltage, charge profile, and any BMS communication requirements. Check the controller’s battery presets and user-defined options before matching it to a specific battery model.
What should an importer request from a controller supplier?
Request the full datasheet, PV input voltage and current limits, supported battery chemistries and charge profiles, communication options, environmental ratings, installation manual, fault-code guide, warranty terms, and local after-sales service process. These documents support the distributor’s technical team and reduce field-support cost.
