What is Three Phase Inverter and How Does It Work

high frequency three phase hybrid inverter detail (7)

What is a three phase inverter? This article allows us to delve into the world of three-phase inverters, exploring how they work, their advantages and disadvantages, and their different applications in a number of fields.

What is three phase inverter

Three phase inverters are power electronics devices used to convert direct current to alternating current and are commonly used in solar power systems, wind power systems and other renewable energy systems. They are capable of handling three-phase alternating current and have a high power output capability. Three-phase inverters are used in a wide range of industrial, commercial and domestic applications to provide a reliable supply of power to a wide range of electrical equipment.

Three-Phase-Inverter-Circuit

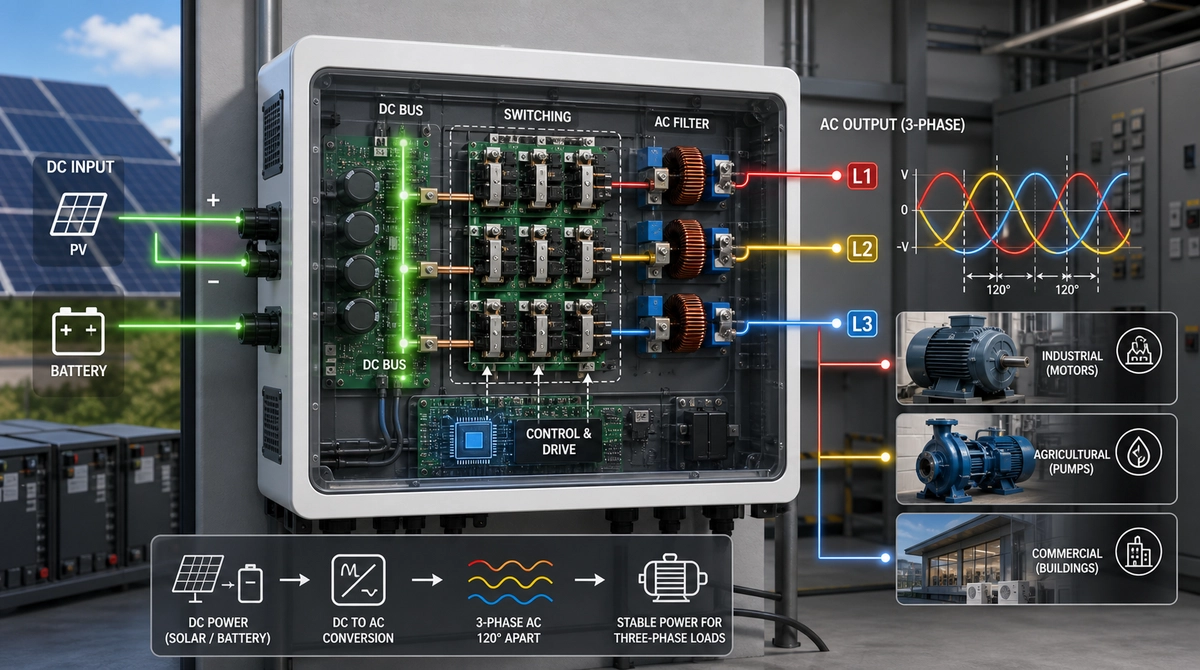

Working principle of three phase inverter

The working principle of a three-phase inverter basically follows the following steps:

Rectification: DC power from a DC source such as a solar panel is fed into the inverter. Inside the inverter, the DC power is first converted to a usable DC power source by a rectifier.

Inverter: The converted DC power is fed into the inverter’s electronic switching network. These switches are switched at a specific frequency and duty cycle as directed by the control circuit to produce the desired AC output. Through the inverter process, DC power is converted to AC power, which can be used to meet the needs of a variety of electrical equipment.

Control and Protection: Inverters are usually equipped with control circuits to monitor and adjust the output current to ensure its stability and quality. In addition, inverters are equipped with various protection functions, such as overload protection and overvoltage protection, to protect the equipment and user safety.

Advantages of three phase inverter

High Power Output: Three-phase inverters are capable of handling larger power conversions, making them suitable for large-scale application scenarios such as industrial and commercial.

Grid interconnection: Many three-phase inverters have grid paralleling capabilities that allow them to interconnect the power generated by the solar power system into the grid, enabling interconnection with the grid for power sharing and exchange.

Stability: Due to its three-phase structure, the output of a three-phase inverter is more stable and able to provide high-quality AC power, which is suitable for application scenarios that require high power quality.

High efficiency: Three-phase inverters typically have a high energy conversion efficiency, capable of converting incoming DC power into high-quality AC power and minimizing energy losses.

Strong adaptability: Three-phase inverters are suitable for a variety of different application scenarios and can be flexibly configured and adjusted to meet the needs of different power and voltage requirements.

Disadvantage of three phase inverter

Higher cost: Three-phase inverters are typically more expensive compared to single-phase inverters because of their greater design and manufacturing complexity.

Installation complexity: Due to their three-phase construction, installing a three-phase inverter typically requires more space and more complex wiring, adding to the complexity and cost of the installation.

Maintenance Difficulty: Three-phase inverters usually consist of multiple electronic components, troubleshooting and maintenance can be more complex and difficult, requiring specialized technical support.

Energy loss: Due to the complexity of power conversion, three-phase inverters may incur large energy losses, especially under low load conditions.

Weight and size: Three-phase inverters are typically heavier and larger than single-phase inverters and may be less suitable for applications where space is limited or mobility is required.

Application of three phase inverter

Industrial applications: Industrial areas usually have high requirements for power supply. Three-phase inverters can provide stable, high-quality alternating current (AC) for driving various industrial equipment, such as motors, frequency converters, machine tools, and so on.

Commercial applications: Commercial buildings usually require large amounts of power supply for lighting, air conditioning, computers and other equipment. Three-phase inverters can be used in solar power systems to provide clean, reliable power supply to commercial buildings.

Agricultural applications: Agricultural fields also have a large demand for electricity, such as irrigation systems and livestock feeding equipment. Three-phase inverters can be used in solar power systems to provide a stable power supply to farms and reduce energy costs.

Power systems: In power systems, three phase inverters can be used to regulate grid voltage and frequency, improving the stability and reliability of the grid. In addition, they can be used to interconnect the grid with renewable energy generation systems to share and exchange power.

Transportation: In electric transportation vehicles, such as electric cars and electric trains, three-phase inverters can convert DC power from batteries to AC power to drive electric motors.

In closing, three phase inverter epitomize the essence of contemporary energy transformation, spearheading sustainable advancements across diverse sectors. Their resilience and adaptability underscore their pivotal role in steering us towards a future powered by clean, renewable energy sources. Let’s embrace their potential to illuminate a path towards a greener, more efficient tomorrow.
