An inverter is an electronic device that converts direct current (DC) into alternating current (AC). It lets DC sources, batteries, solar panels, and vehicle systems, run the AC appliances and equipment that homes, offices, and factories are built around.
That one job sits at the center of every solar power system, backup power supply, UPS, and off-grid setup. This guide explains what an inverter does, how the DC-to-AC conversion actually works, the main types you’ll compare when buying, and how to match one to your loads. The terms “inverter” and “power inverter” mean the same device here.
Key Takeaways
- An inverter converts DC (from batteries or solar) into the AC that standard appliances need.
- It works by switching DC on and off thousands of times per second (PWM), then filtering the result into a sine wave.
- Modern solar inverters reach 95-98% CEC weighted efficiency; peak efficiency can hit 98% (Sandia PVPMC).
- The right type depends on four questions: pure or modified sine wave, on-grid/off-grid/hybrid, single or three-phase, high or low frequency.
What Does an Inverter Do?

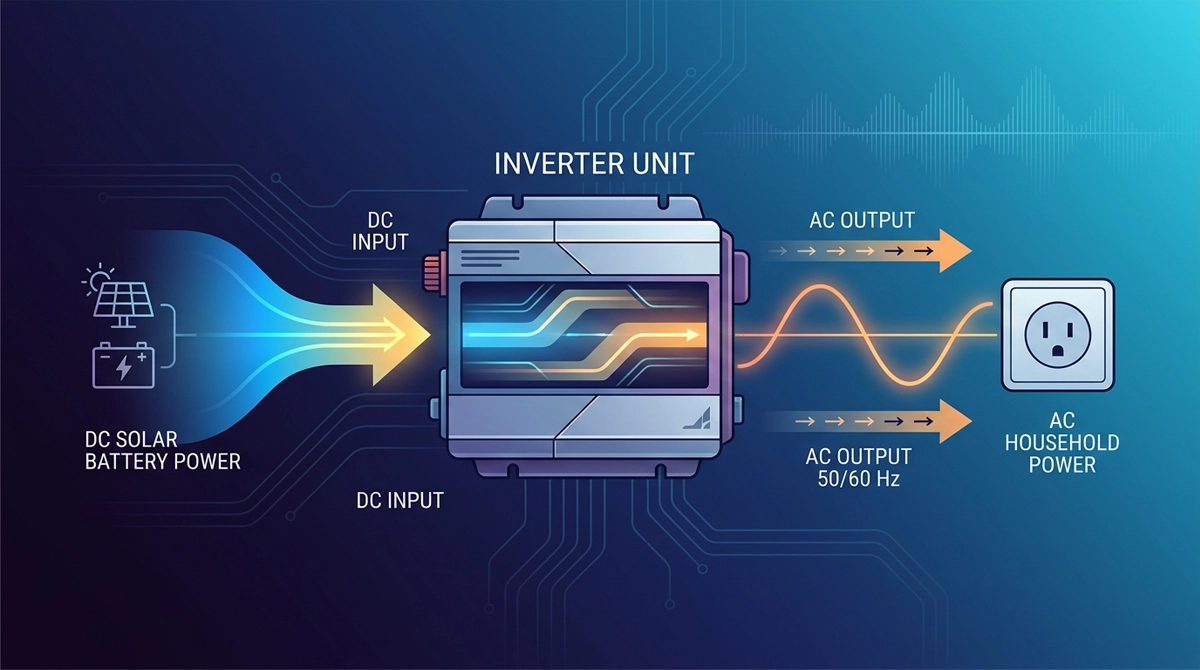

An inverter’s core function is DC-to-AC conversion: it turns the one-directional DC that batteries and solar panels produce into the alternating current that appliances and the grid use. Without it, the energy stored in a battery bank or generated by a solar array cannot run a refrigerator, a pump, or a computer.
Most quality inverters do more than convert. In real systems they add voltage regulation, overload protection, short-circuit protection, battery protection, and monitoring. In a solar or backup system, the inverter is the component that decides reliability, load compatibility, and power quality, which is why it deserves more attention than it usually gets in a purchase decision.
How Does an Inverter Convert DC to AC?
An inverter uses fast electronic switches, MOSFETs or IGBTs, to chop DC into pulses under PWM (pulse-width modulation) control, then filters those pulses into a smooth AC waveform. DC flows in one direction; AC reverses direction many times per second (50 or 60 times, depending on your country’s grid). The inverter manufactures that reversal electronically.
The conversion runs in five stages:
- DC input from a battery, solar array, or other DC source.
- High-speed switching that turns the DC on and off in a controlled pattern.
- Waveform generation through PWM, shaping the pulse widths so their average traces a sine wave.
- Voltage regulation to hold output steady as the load changes.
- Filtering that smooths the pulses into clean AC and removes switching noise.
For a three-phase inverter, the same principle runs across a six-switch bridge to produce three outputs; our guide to how a three-phase inverter works covers that variant in detail.
What Are the Main Types of Inverters?
Inverters are classified four ways, and a real product sits at the intersection of all four: by waveform, by grid relationship, by output phase, and by transformer design. Understanding these four axes is what turns a confusing spec sheet into a clear choice.
By waveform: pure sine vs modified sine
- Pure sine wave inverter produces clean AC matching grid electricity. It suits sensitive electronics, refrigerators, motors, pumps, medical equipment, and computers. It’s the default for anything you care about.
- Modified sine wave inverter is cheaper and runs basic resistive loads (simple lights, heating elements). It can hum, run motors hot, or damage sensitive electronics, so it’s a budget choice for simple jobs only.
By grid relationship: on-grid, off-grid, hybrid
- On-grid (grid-tie) inverter feeds solar power into the utility grid, synchronizing with grid voltage and frequency. No battery, no backup: it shuts down in an outage.
- Off-grid inverter runs a standalone system from batteries and solar, with no grid at all. Standard for remote homes, cabins, and farms.
- Hybrid inverter combines solar, battery, and grid in one unit, giving both energy savings and backup. It’s the backbone of modern storage systems. If backup matters, compare a hybrid inverter against a grid-tie inverter before deciding, and if you’re weighing grid connection itself, see on-grid vs off-grid solar inverters.
By output phase: single vs three-phase
- Single-phase inverter suits homes and small businesses, typically up to about 10kW.
- Three-phase inverter serves commercial and industrial sites, motors, and large loads. The full trade-off is in our single-phase vs three-phase comparison. In the Americas, there’s also a third option, split-phase (120/240V), which is often confused with three-phase but is a different thing entirely.
By transformer design: high vs low frequency
- High-frequency inverter is compact, light, and efficient, common in modern residential products.
- Low-frequency inverter is heavier but handles big surge loads and heavy-duty motor starts better. Our high-frequency vs low-frequency guide quantifies the trade.
How Efficient Are Inverters?
Modern solar inverters typically reach 95-98% CEC weighted efficiency, and peak efficiency can touch 98%. The gap between the two numbers is the one buyers should watch (Sandia PVPMC). Peak efficiency is the best single reading; CEC weighted efficiency, developed by the California Energy Commission, averages performance across six power levels to reflect real daily use. An inverter advertising 98% peak may deliver about 96% weighted.
Efficiency is the ratio of usable AC output to DC input; whatever is lost becomes heat. Real-world figures depend on load level, battery voltage, temperature, and wiring quality. A datasheet number measured at the ideal operating point won’t repeat at 10% load or in a hot enclosure, so weighted efficiency is the more honest comparison between products.
Where Are Inverters Used?
Inverters appear anywhere DC power has to run AC equipment:
- Solar power systems (residential, C&I, utility)
- Home and business backup power
- UPS systems for critical loads
- Off-grid homes, cabins, and farms
- RVs, caravans, and marine systems
- Telecom backup power
- Portable power stations
In weak-grid and load-shedding markets, which are Techfine’s focus, the hybrid and off-grid categories dominate because buyers need the inverter to carry loads through outages, not just save on bills.
How Do You Choose the Right Inverter?
Start from your loads and grid, then work through the four type axes: waveform, grid relationship, phase, and frequency. A structured pass beats brand-shopping every time.
- Total power: add up the watts running at once, then add surge headroom for motors, pumps, and compressors (a motor can pull 3x its running power at startup).
- Waveform: pure sine for anything sensitive, which is most modern loads.
- Grid relationship: off-grid or hybrid if you need backup; on-grid only where the grid is stable and net metering pays.
- Battery voltage: match the inverter’s DC input to your bank (12V, 24V, 48V, or high-voltage).
- Phase: single-phase for homes, three-phase for C&I and motor loads.
- Protection and lifespan: check overload, over-temperature, and short-circuit protection; our inverter protection overview and how long inverters last cover durability, and IP21 vs IP65 covers enclosure choice for outdoor installs.
For solar storage, inverters pair with battery storage systems sized to your backup needs.
FAQ: Inverter Basics
What is the difference between an inverter and a power inverter?
None. “Inverter” and “power inverter” refer to the same device: an electronic unit that converts DC to AC. “Power inverter” is common for standalone battery-to-AC units (RVs, backup), while “inverter” is used broadly, including solar inverters that also manage panel input.
Is a solar inverter the same as a normal inverter?
A solar inverter is a specialized inverter that also handles solar panel input, MPPT charging, and often grid synchronization or battery management. A basic power inverter only converts battery DC to AC. All solar inverters are inverters; not all inverters are solar inverters.
Do I need a pure sine wave inverter?
For almost all modern loads, yes. Pure sine wave output matches grid power, so it runs sensitive electronics, motors, and appliances safely. Modified sine wave inverters cost less but can damage or overheat sensitive devices, so reserve them for simple resistive loads.
What size inverter do I need?
Add the running wattage of everything used at once, then add surge headroom for motor-driven loads (often 3x running power at startup). Undersizing for surge is the most common mistake. For a full system calculation including battery and panels, see our sizing guides linked above.
Can an inverter run without a battery?
Grid-tie (on-grid) inverters run directly from solar without a battery, but they stop working during an outage. Off-grid and hybrid inverters need a battery to function or to provide backup. Your answer depends on whether you need power when the grid is down.
